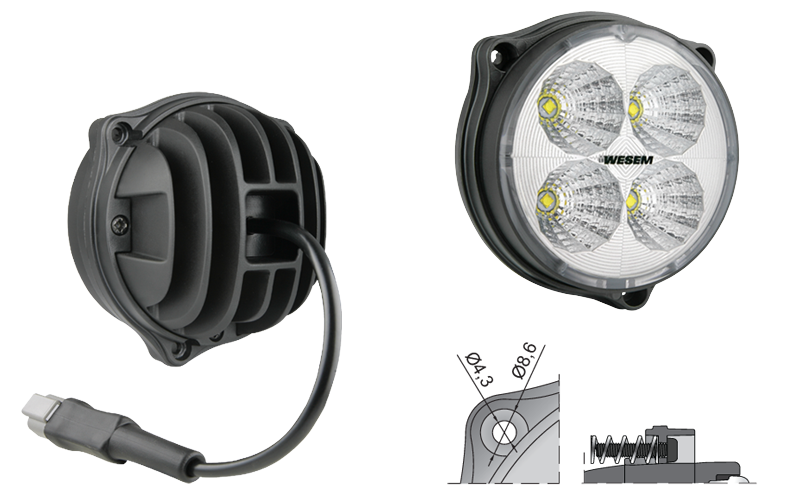

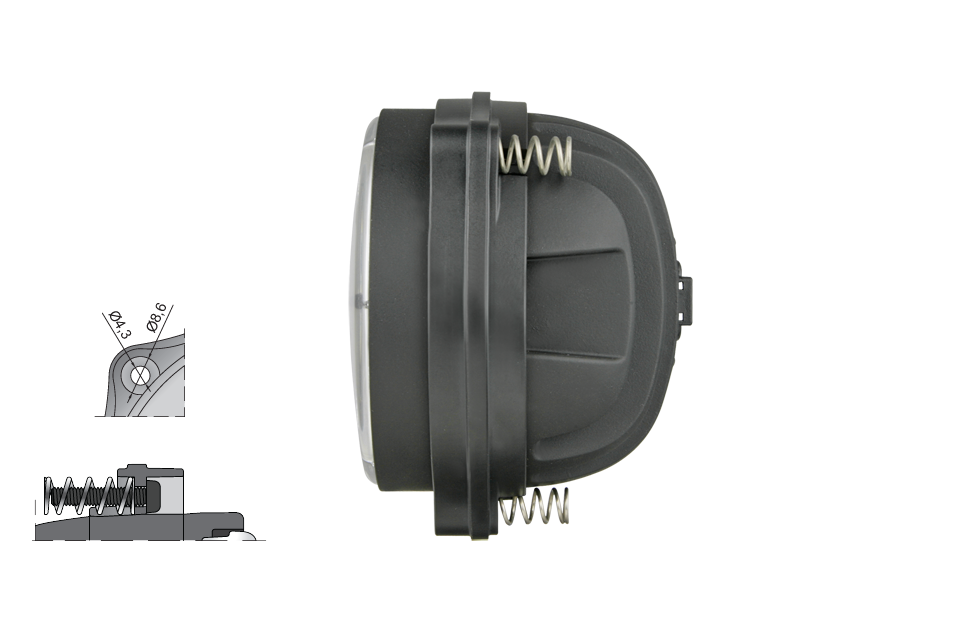

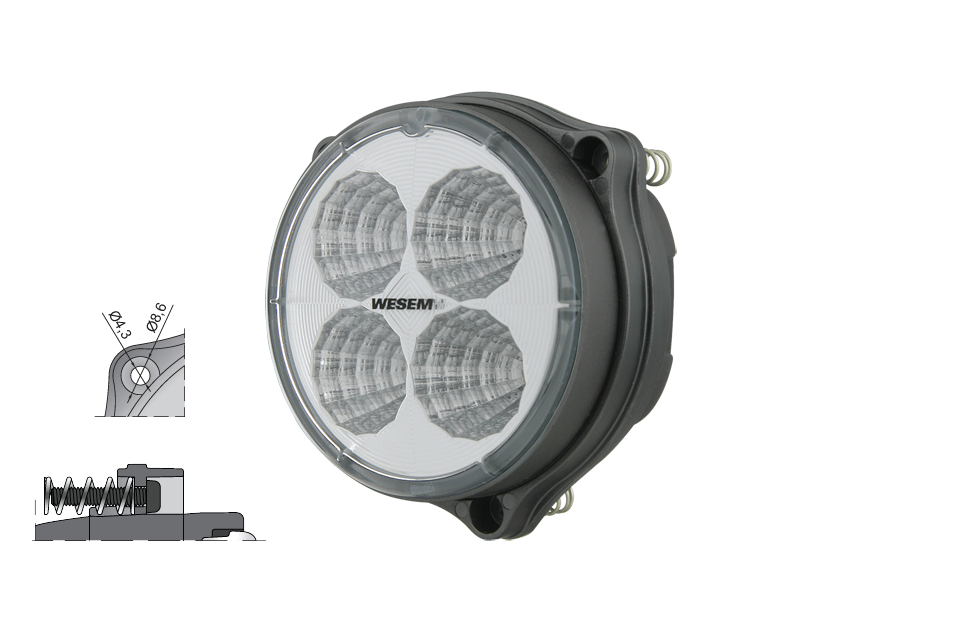

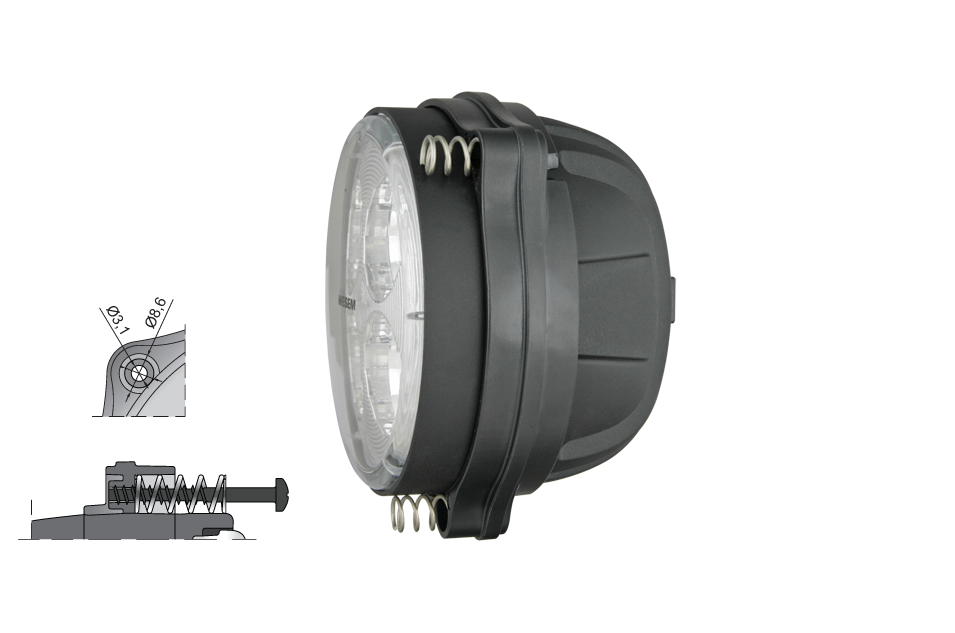

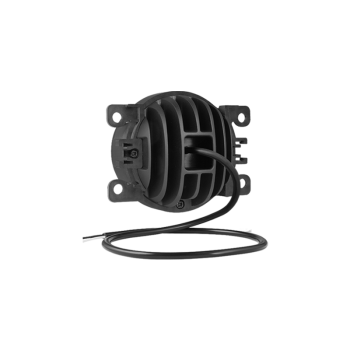

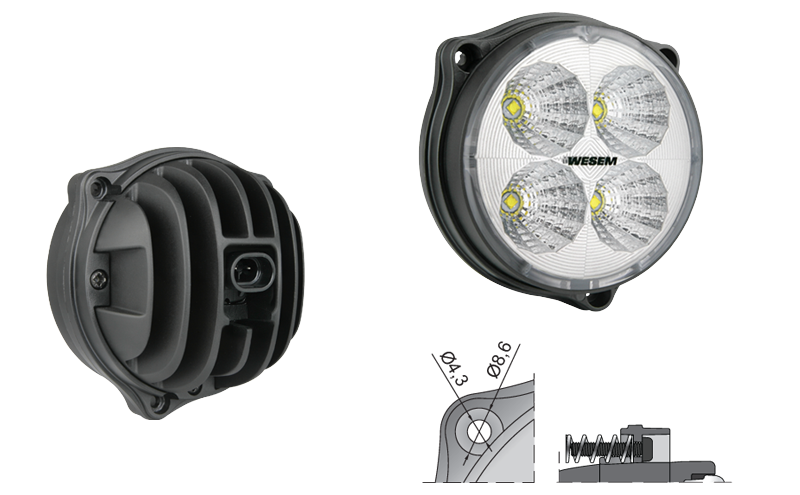

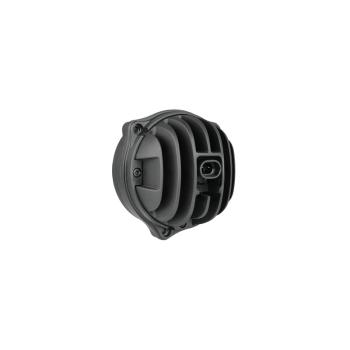

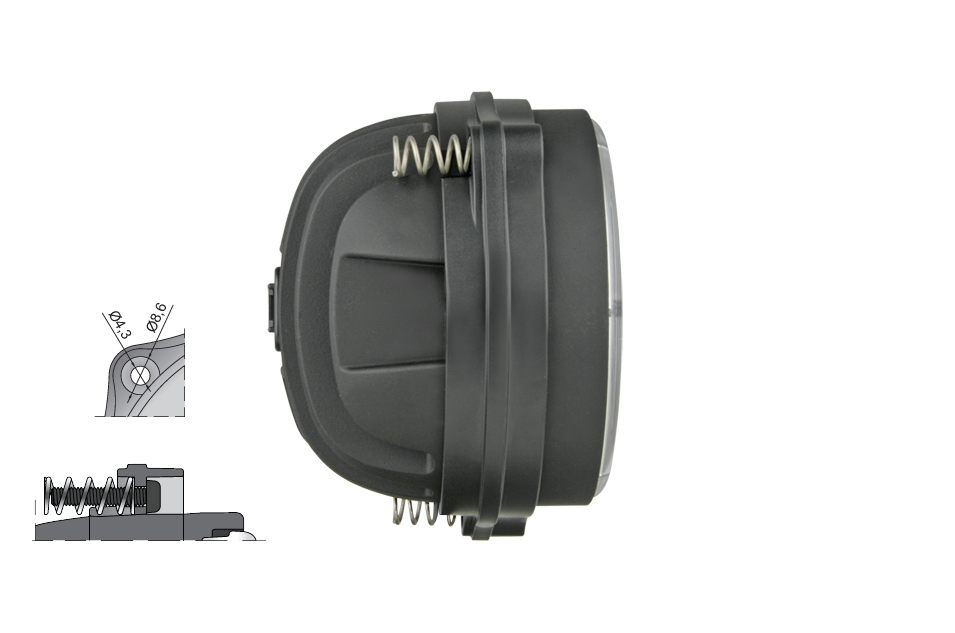

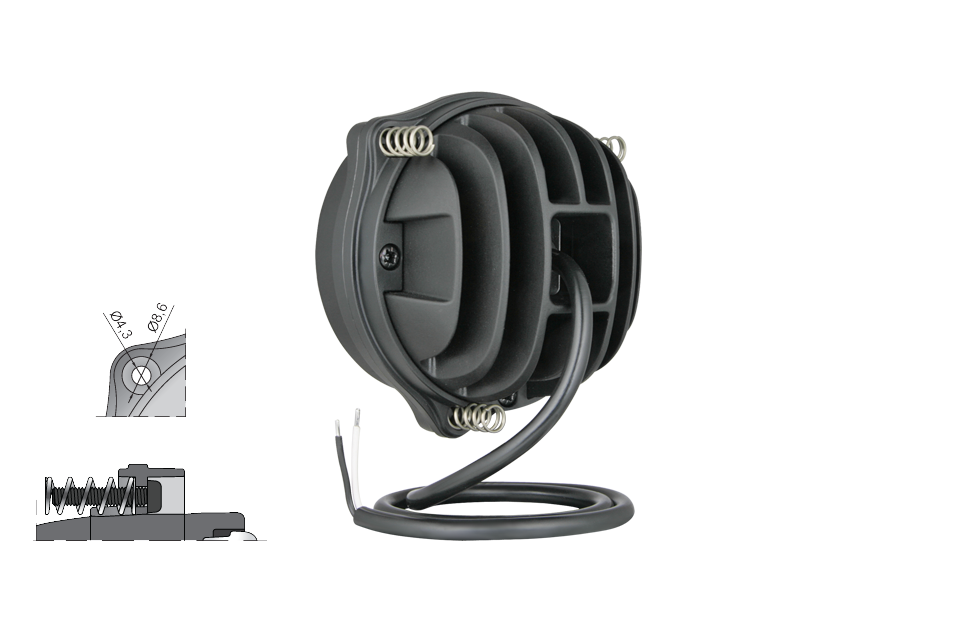

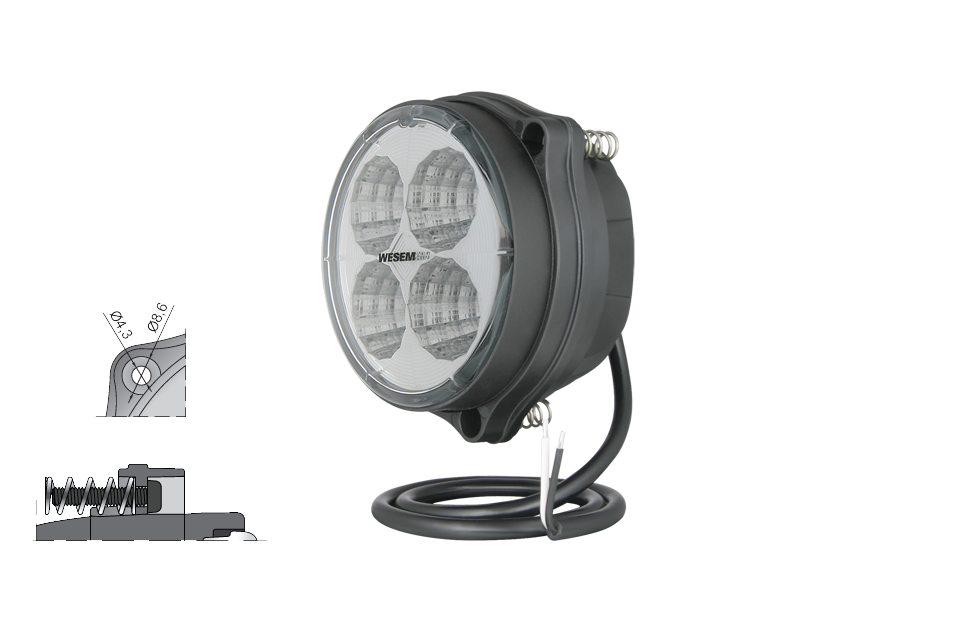

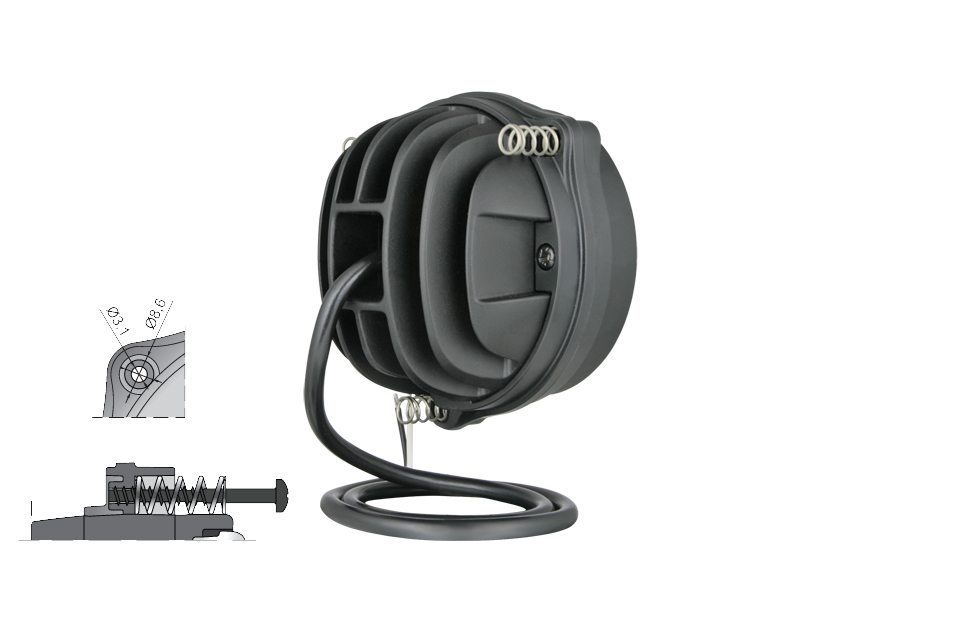

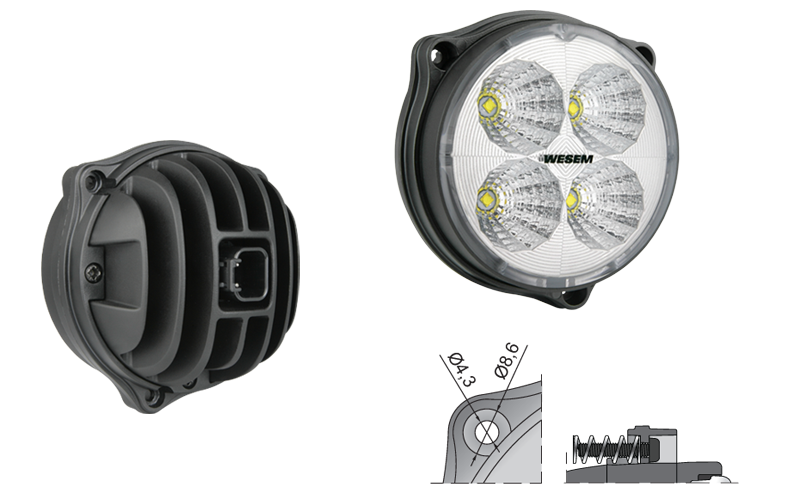

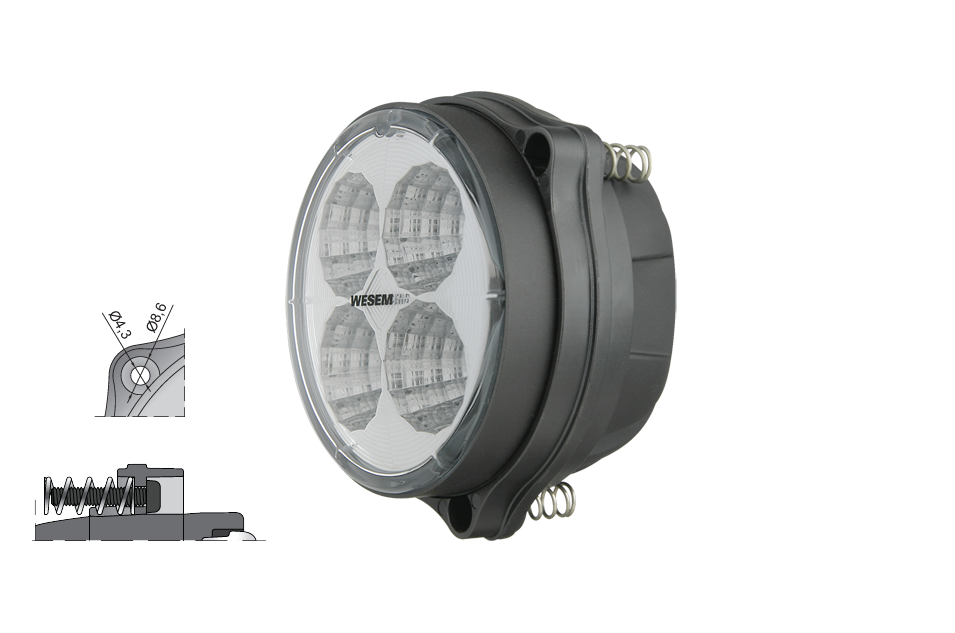

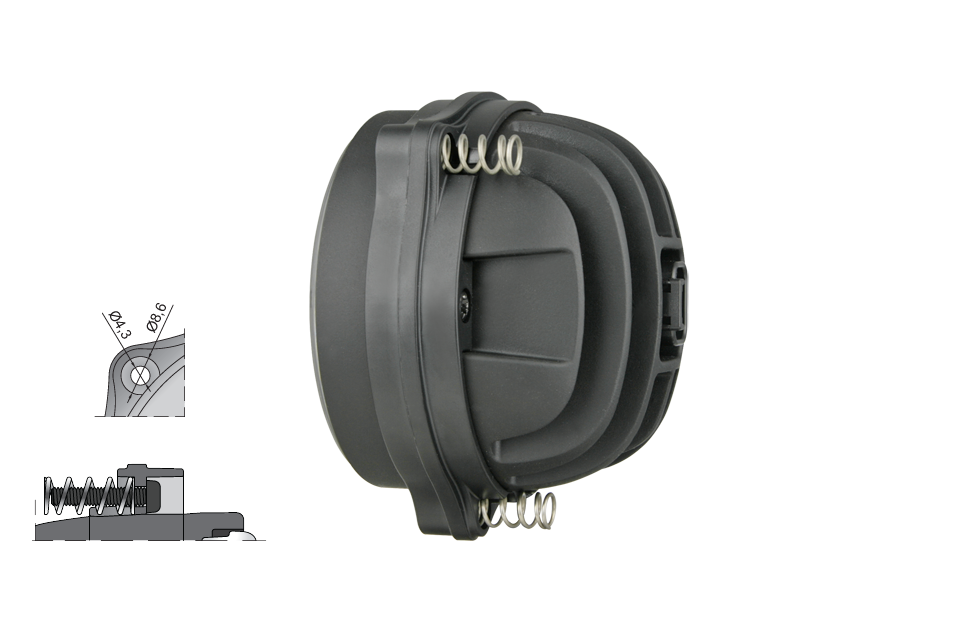

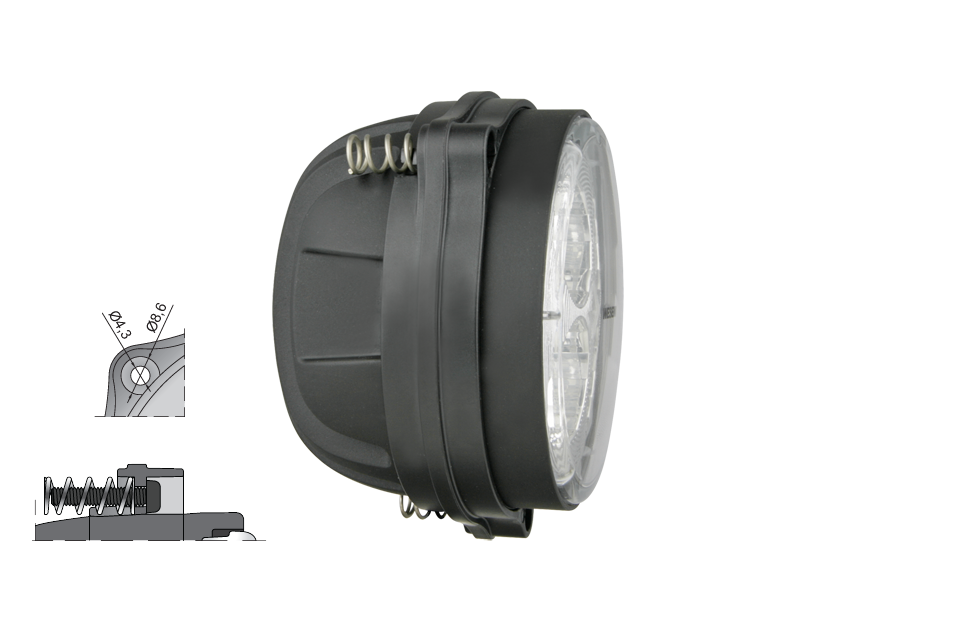

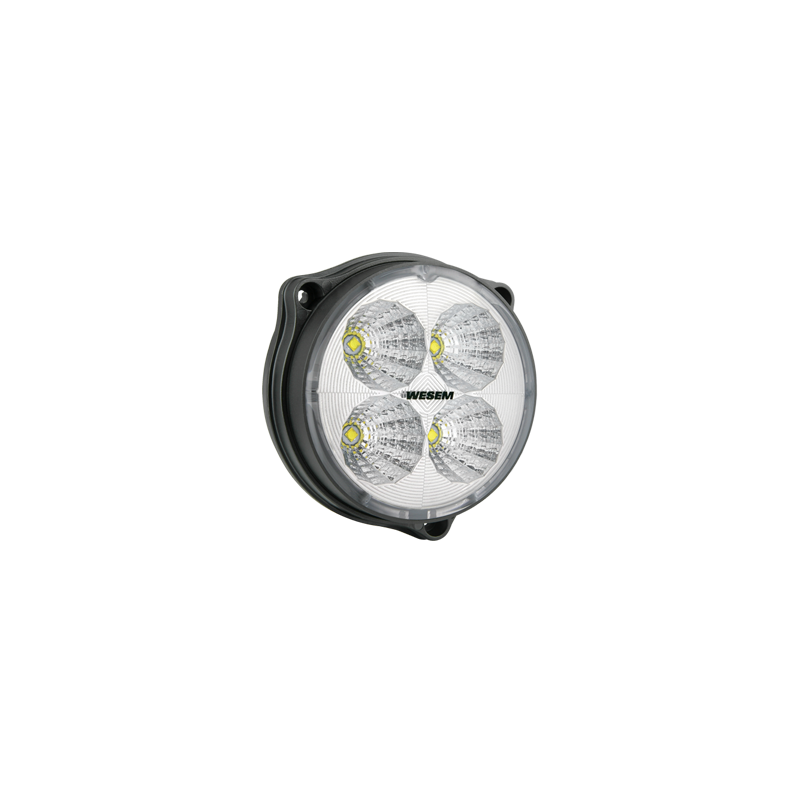

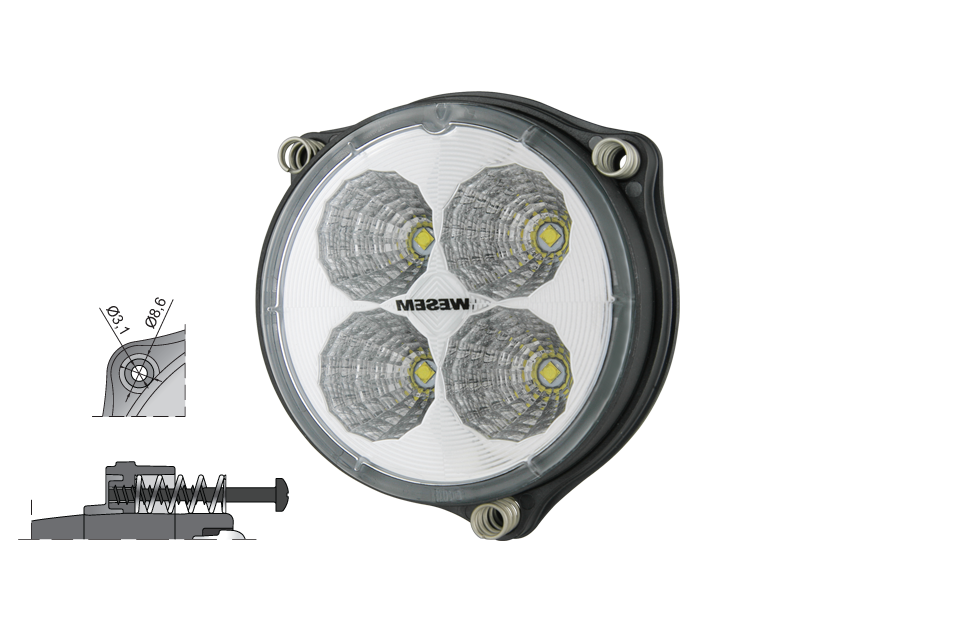

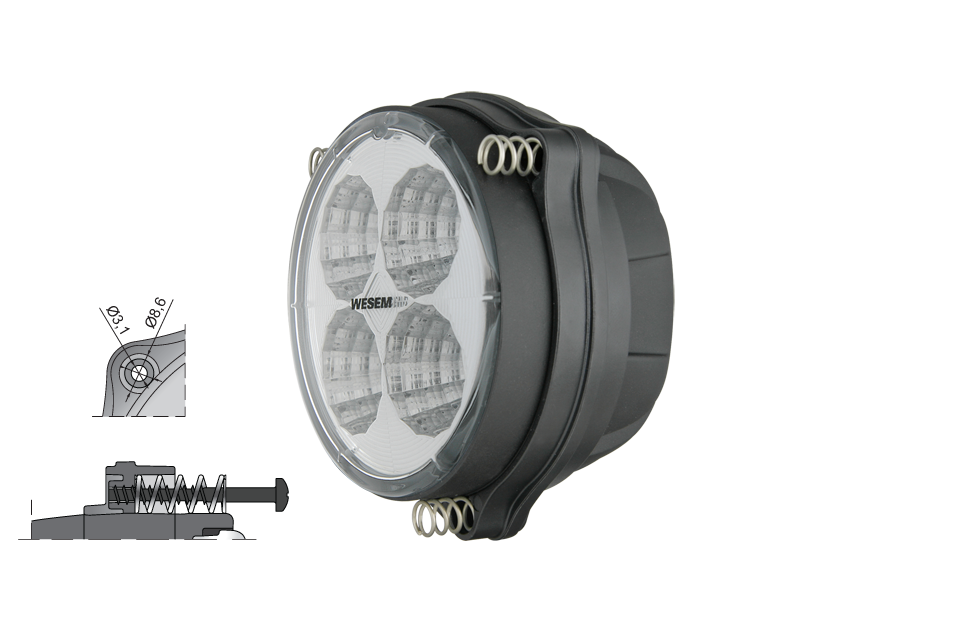

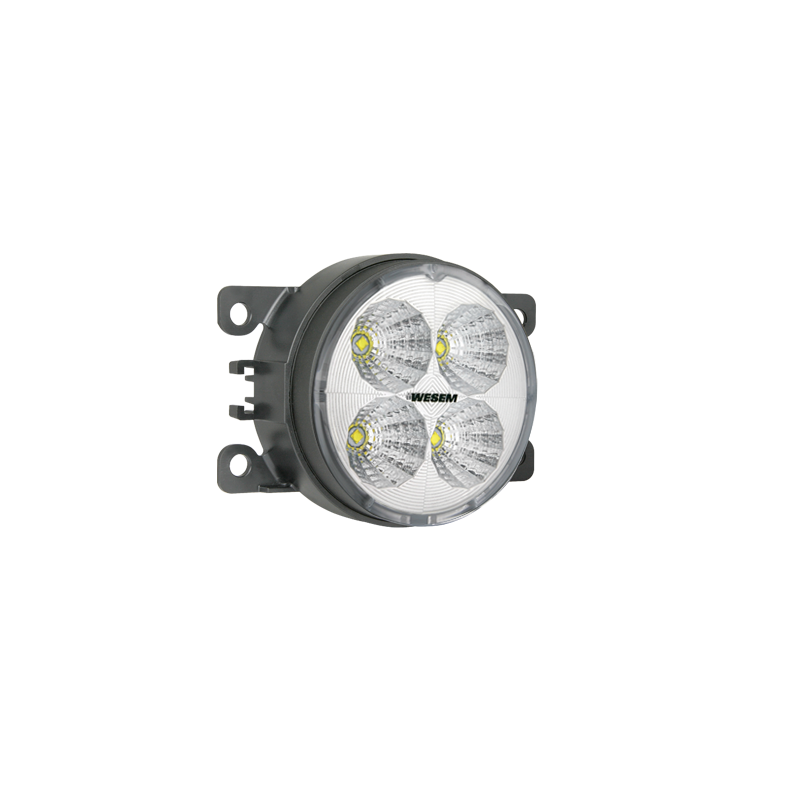

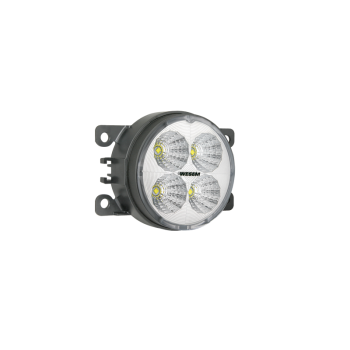

CRC5-FF built-in LED work lamps

CRC5-FF built-in LED work lamps

CRC5-FF built-in LED work lamps

CRC5-FF built-in LED work lamps

CRC5-FF built-in LED work lamps

Dimensions	Ø87x72
Rated power	21W, 18W, 14.5W
Light source	4 x LED
Supply voltage	12V-24V DC
Luminous flux	2000 lm, 1500 lm, 1000 lm
Beam angle	58°, 35°
Beam type	wide
IP rating	IP67, IP69K

Catalogue page

Product versions

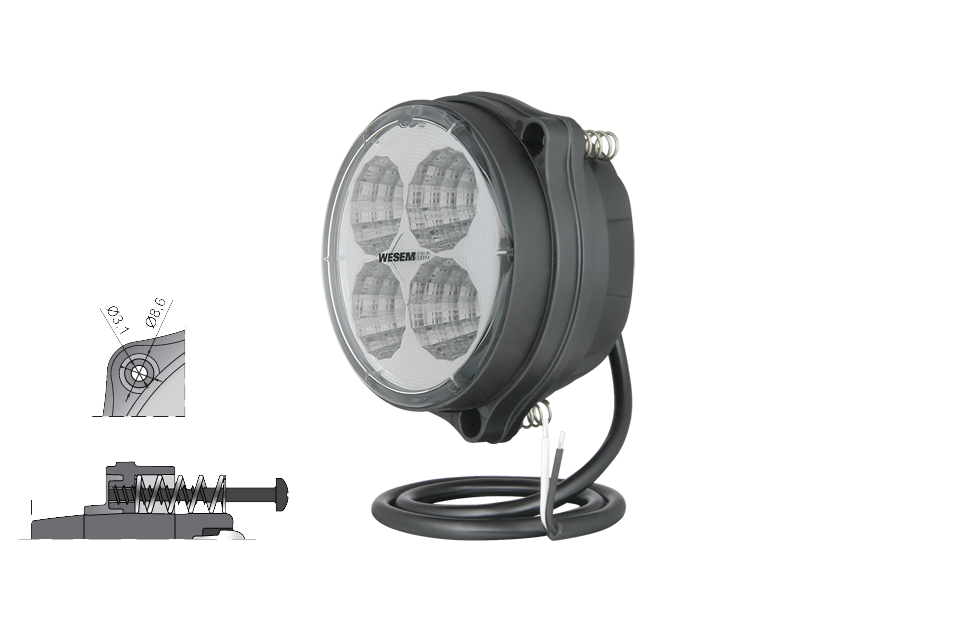

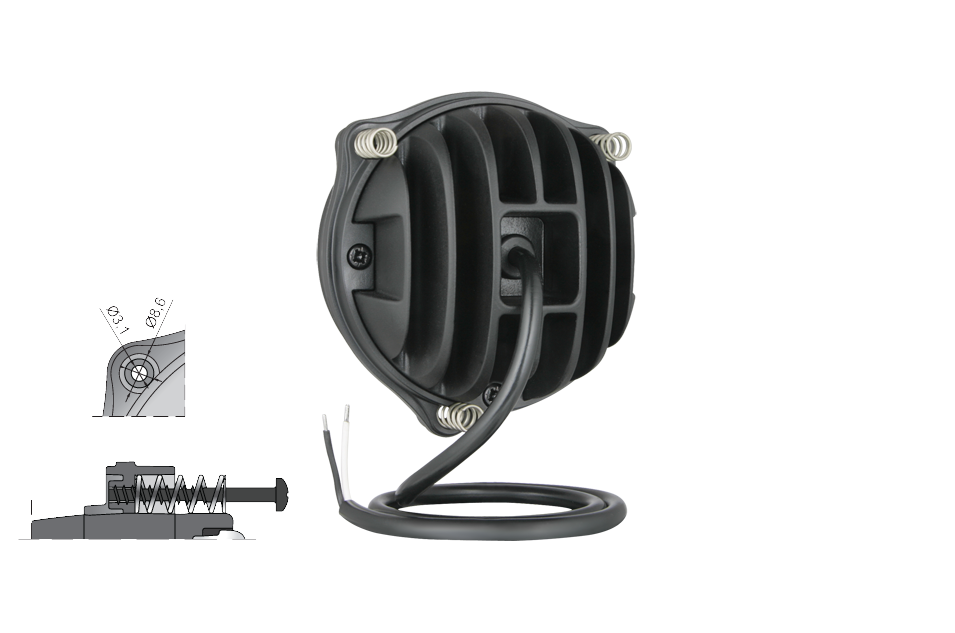

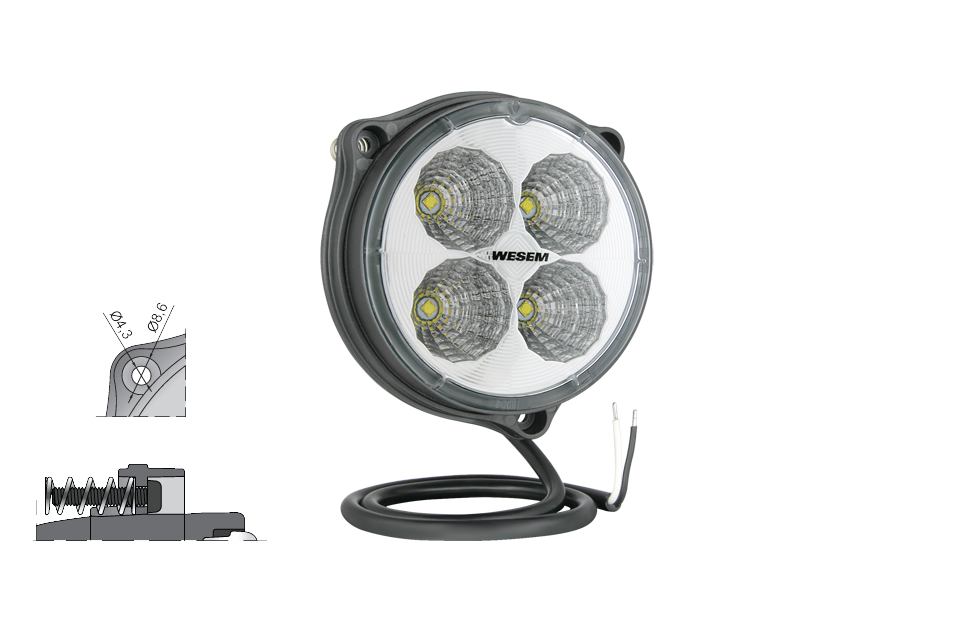

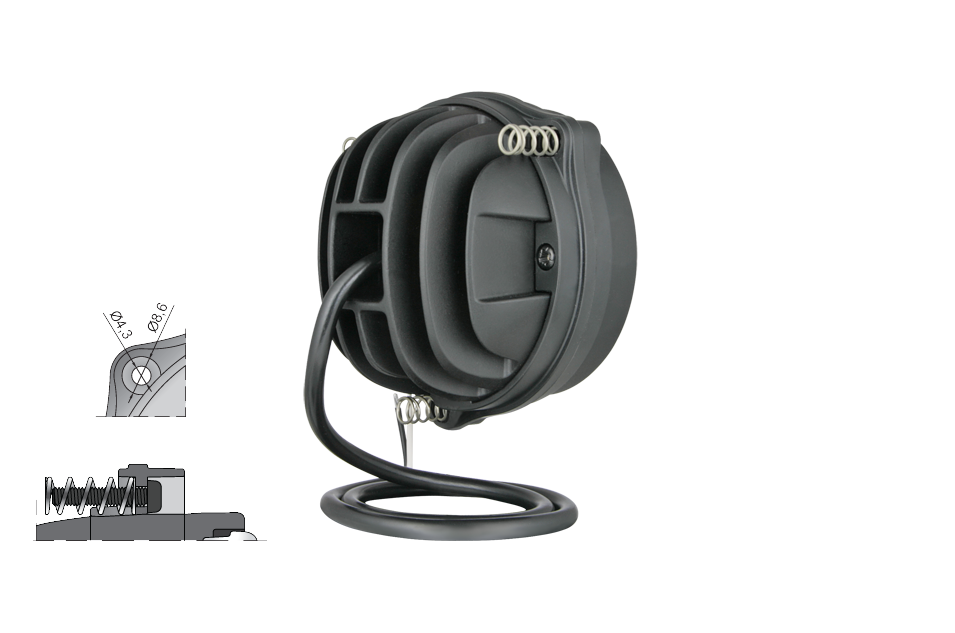

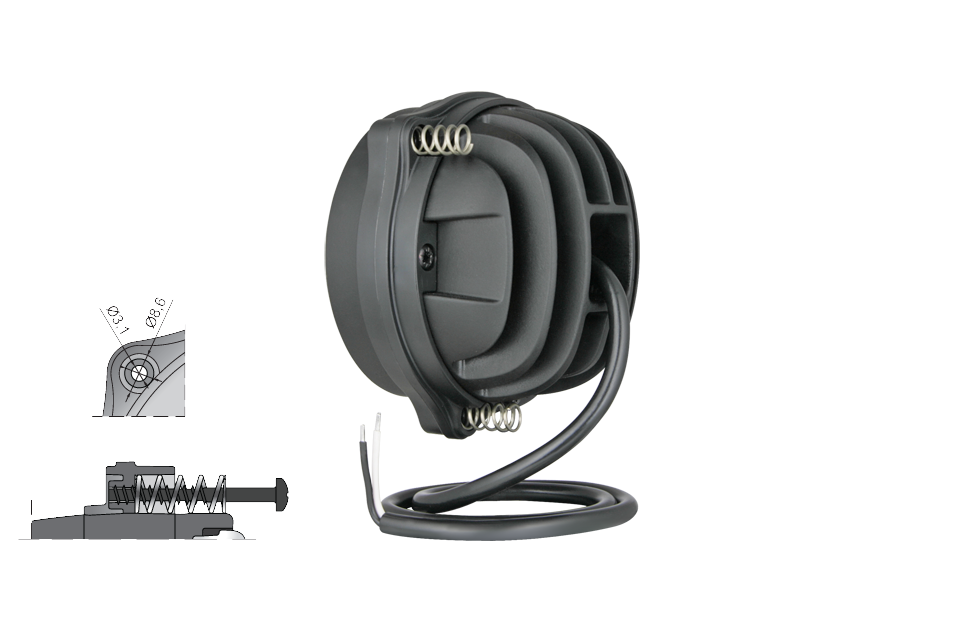

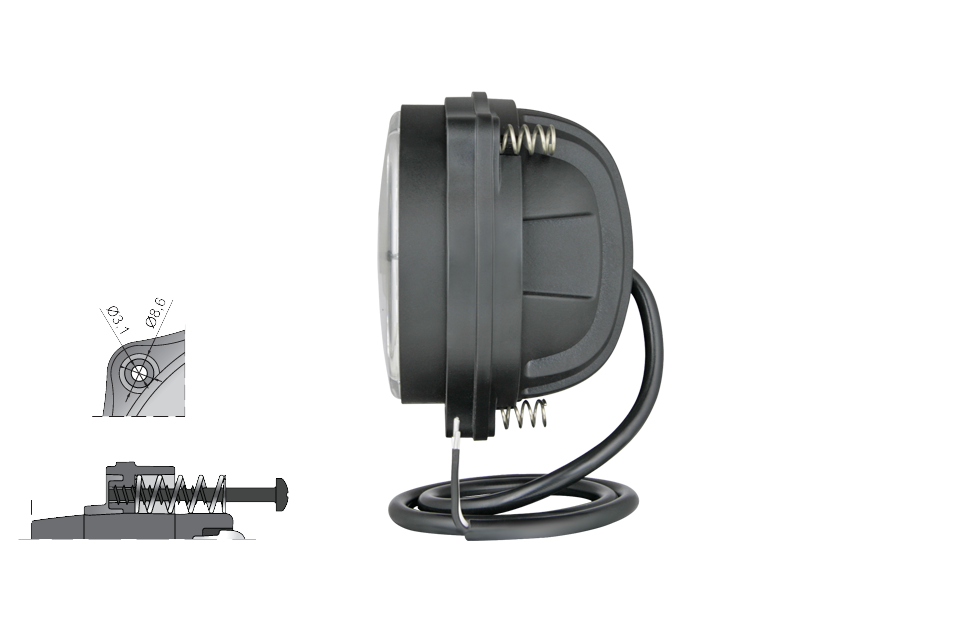

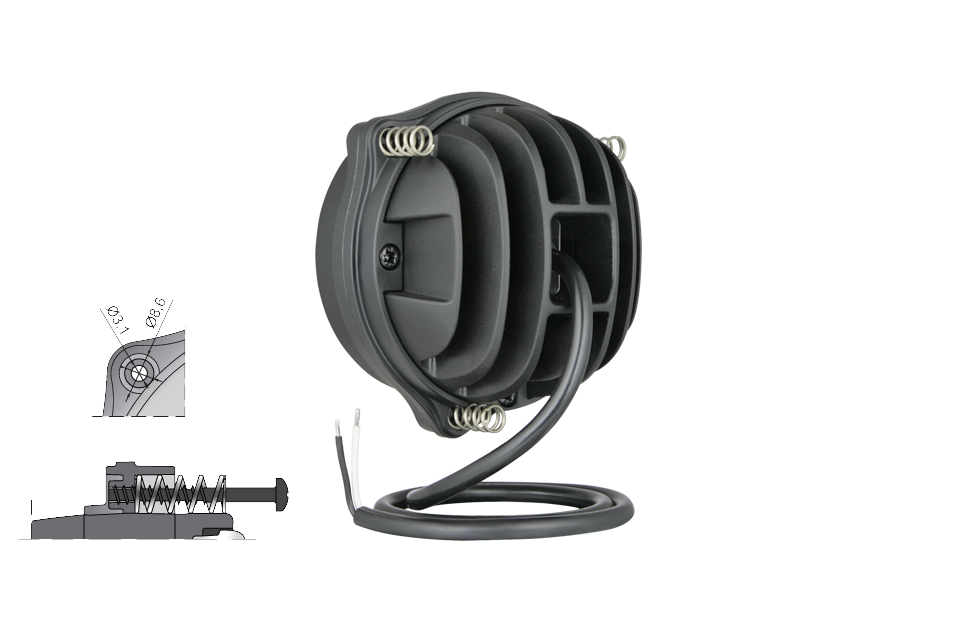

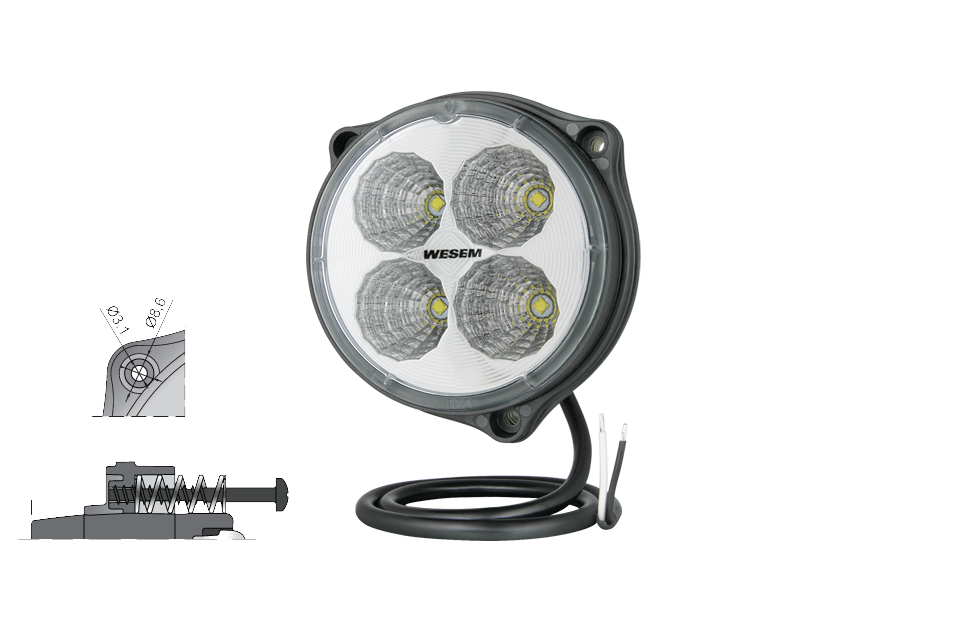

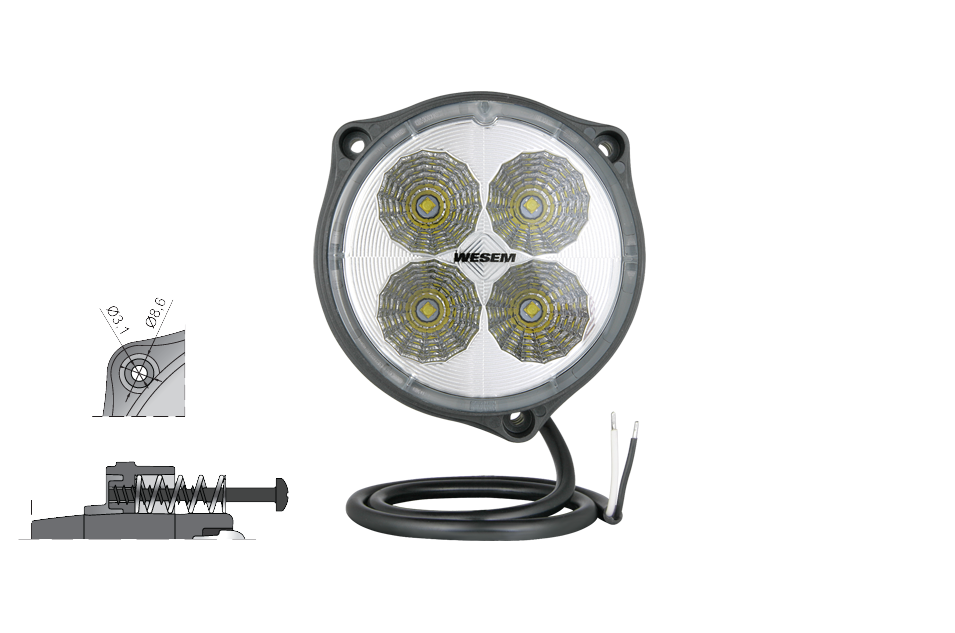

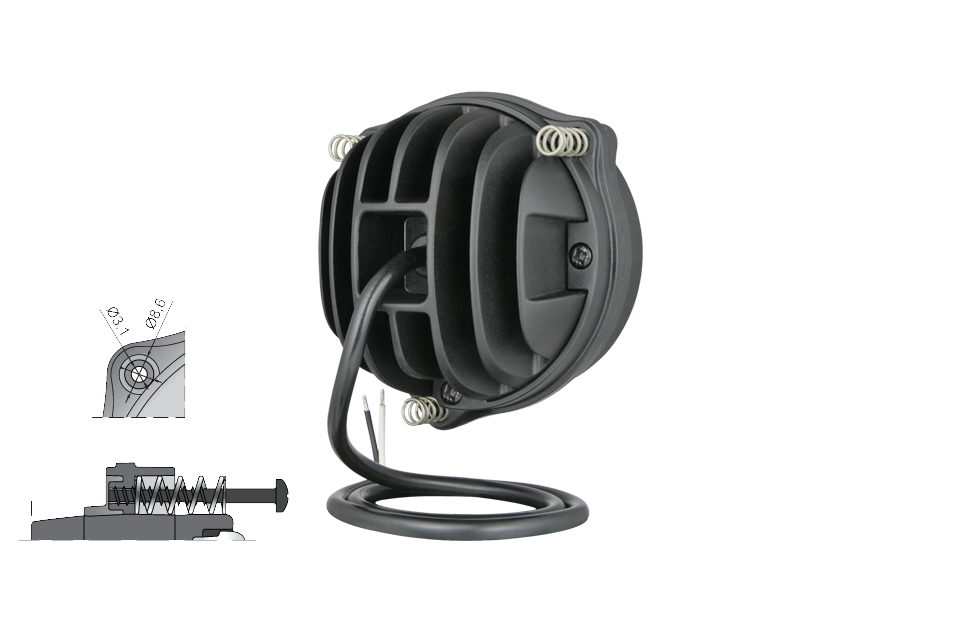

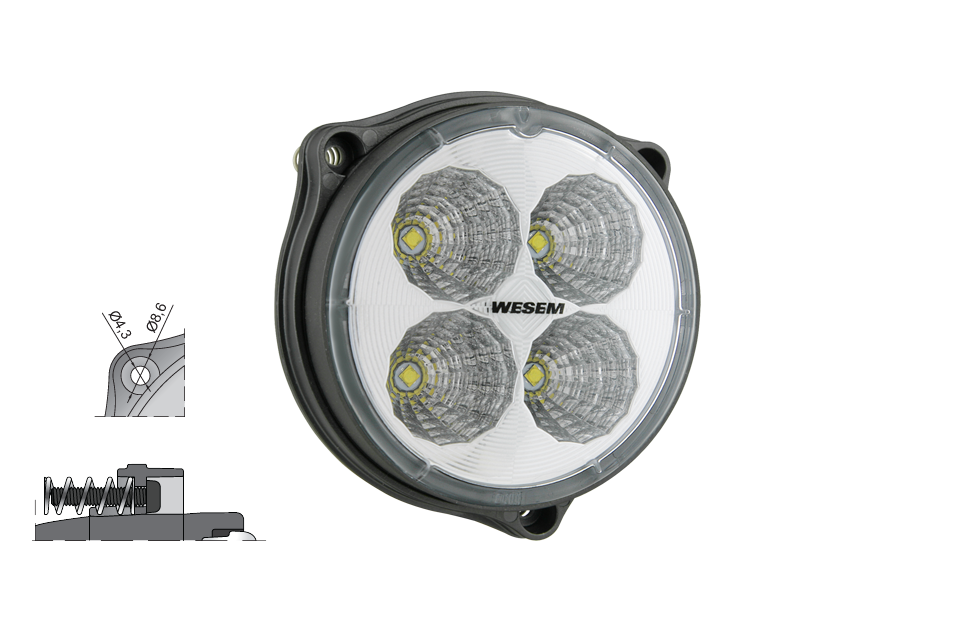

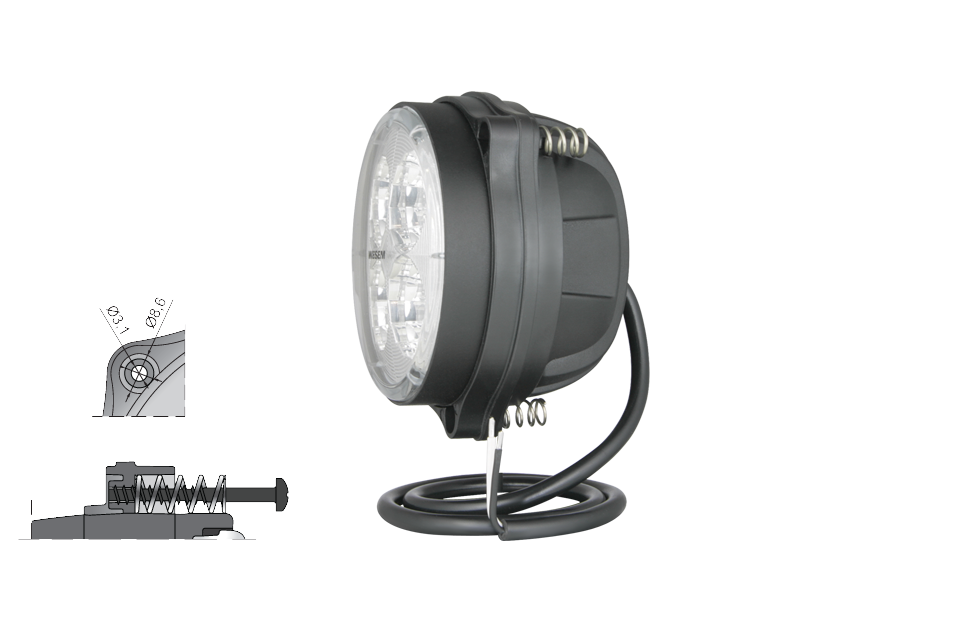

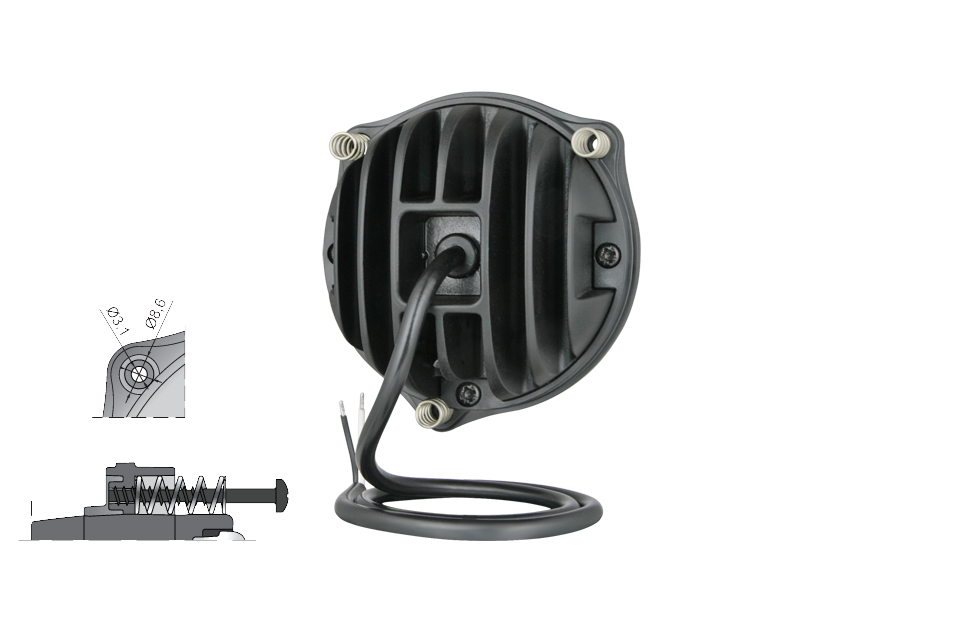

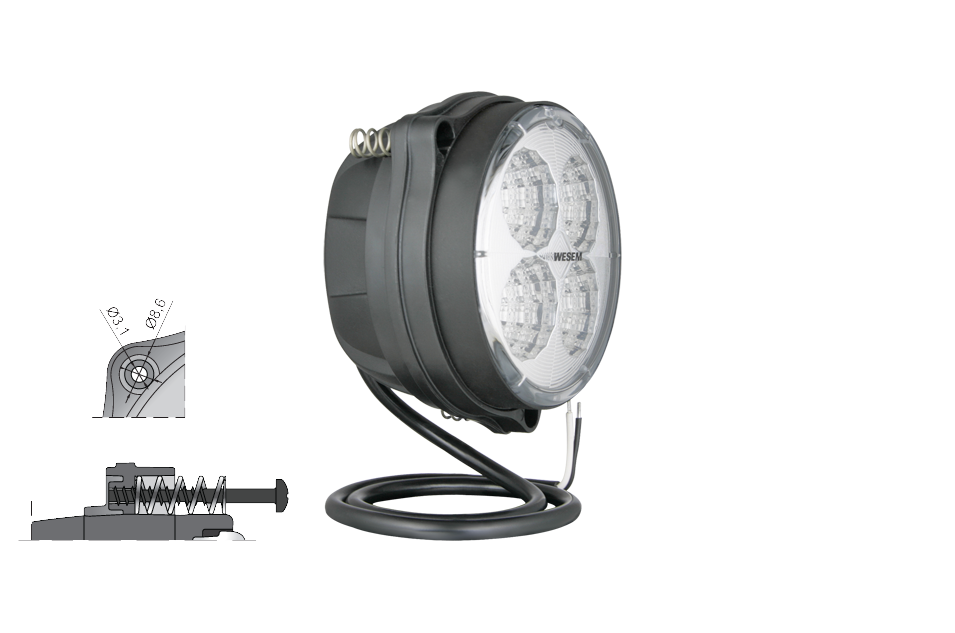

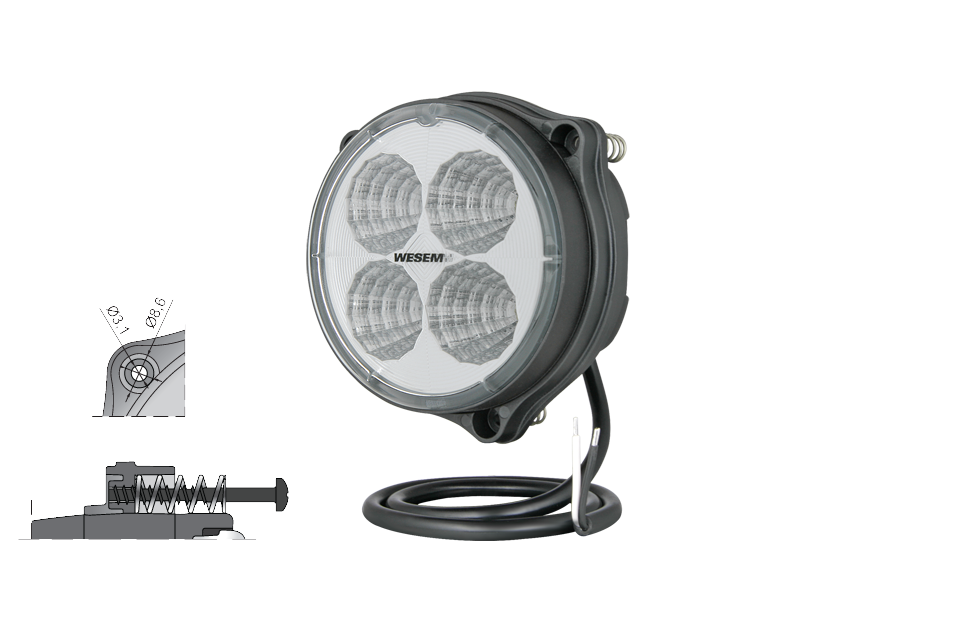

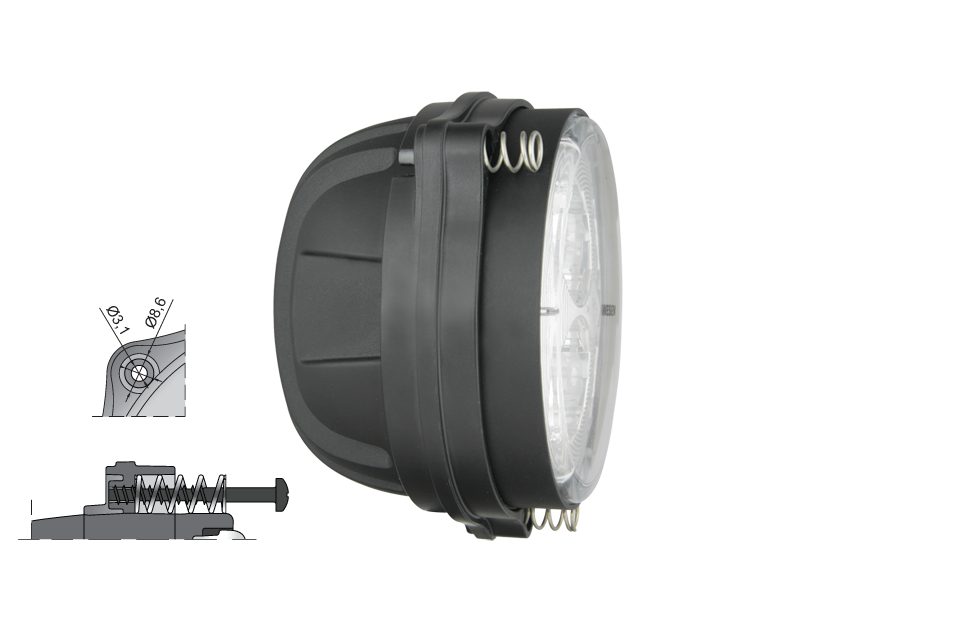

LED work lamp with cable (3 screw version)

LED work lamp with cable (3 screw version)

LED work lamp with cable (3 screw version)

Compare	Part number	Equipment		Quantity
	CRC5H.53320	beam angle 58°, 2000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5H.53320 Quantity: carton box/1		carton box/1
	CRC5D.51620	beam angle 58°, 1500lm - LED module 12V-24V, cable 0,5 m Part number: CRC5D.51620 Quantity: carton box/1		carton box/1
	CRC5C.51520	beam angle 58°, 1000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5C.51520 Quantity: carton box/1		carton box/1

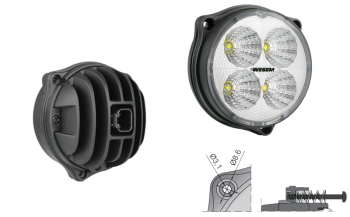

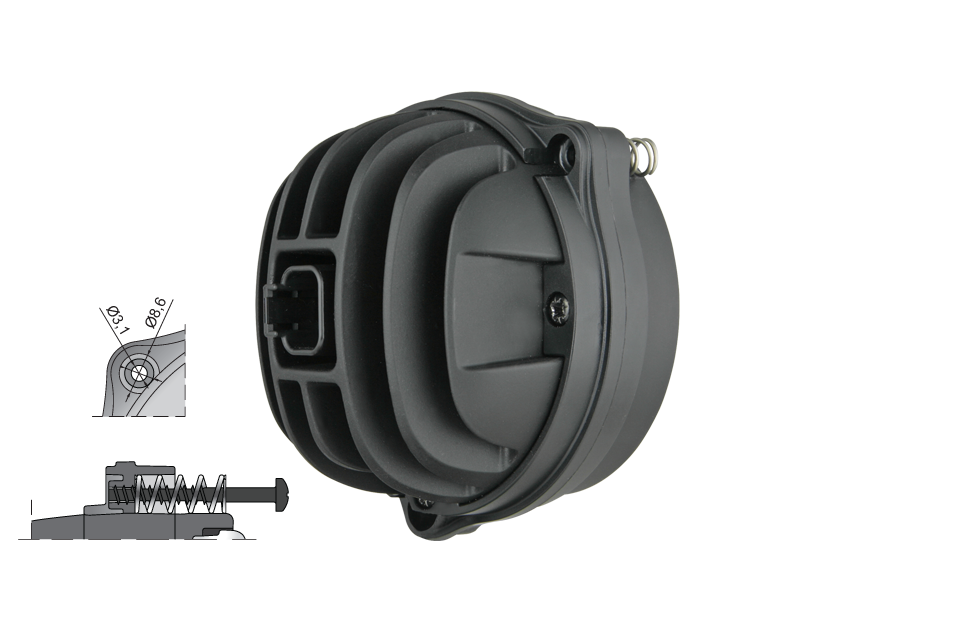

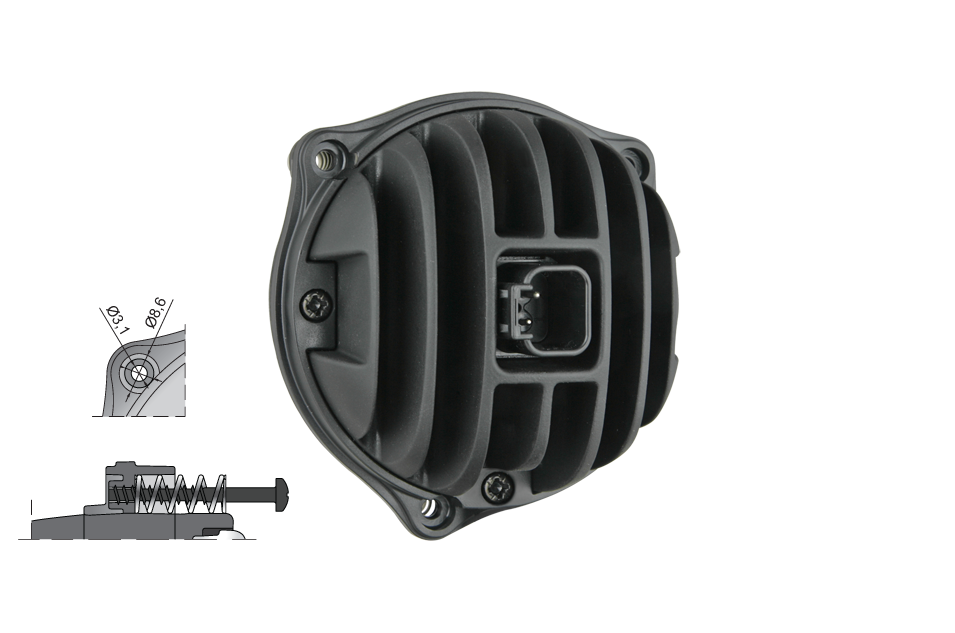

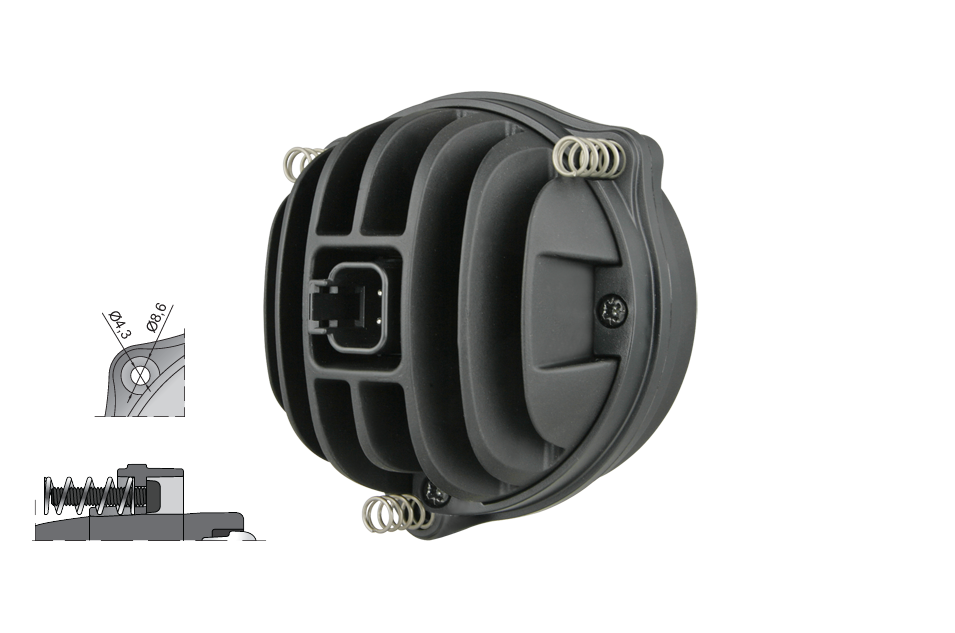

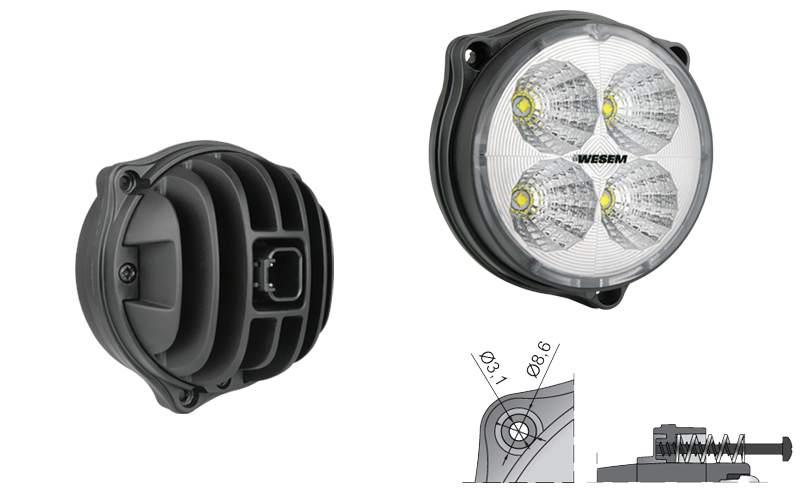

LED work lamp with built-in Deutsch DT04-2P connector (3 screw version)

LED work lamp with built-in Deutsch DT04-2P connector (3 screw version)

LED work lamp with built-in Deutsch DT04-2P connector (3 screw version)

Compare	Part number	Equipment		Quantity
	CRC5D.51623	beam angle 58°, 1500lm - LED module 12V-24V Part number: CRC5D.51623 Quantity: carton box/1		carton box/1
	CRC5C.51523	beam angle 58°, 1000lm - LED module 12V-24V Part number: CRC5C.51523 Quantity: carton box/1		carton box/1

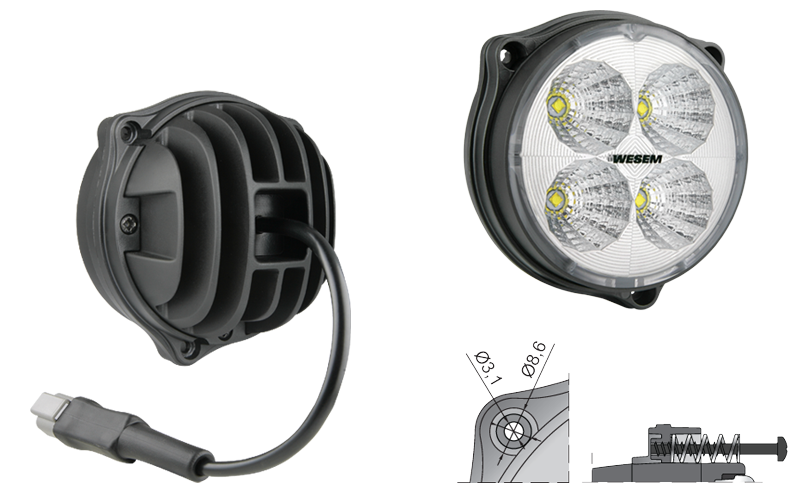

LED work lamp with cable and Deutsch DT04-2P connector (3 screw version)

LED work lamp with cable and Deutsch DT04-2P connector (3 screw version)

LED work lamp with cable and Deutsch DT04-2P connector (3 screw version)

Compare	Part number	Equipment		Quantity
	CRC5H.53325	beam angle 58°, 2000lm - LED module 12V-24V, cable 0,15 m Part number: CRC5H.53325 Quantity: carton box/1		carton box/1
	CRC5D.51625	beam angle 58°, 1500lm - LED module 12V-24V, cable 0,15 m Part number: CRC5D.51625 Quantity: carton box/1		carton box/1
	CRC5C.51525	beam angle 58°, 1000lm - LED module 12V-24V, cable 0,15 m Part number: CRC5C.51525 Quantity: carton box/1		carton box/1

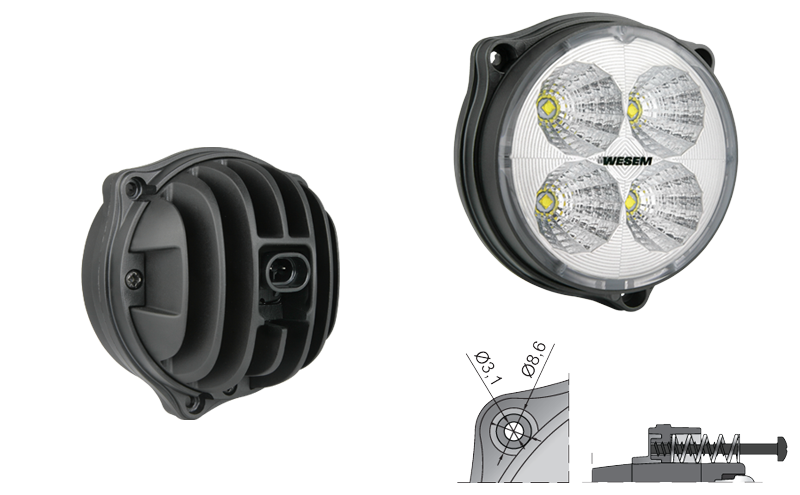

LED work lamp with built-in AMP SuperSeal connector (3 screw version)

LED work lamp with built-in AMP SuperSeal connector (3 screw version)

LED work lamp with built-in AMP SuperSeal connector (3 screw version)

Compare	Part number	Equipment		Quantity
	CRC5D.51627	beam angle 58°, 1500lm - LED module 12V-24V Part number: CRC5D.51627 Quantity: carton box/1		carton box/1
	CRC5C.51527	beam angle 58°, 1000lm - LED module 12V-24V Part number: CRC5C.51527 Quantity: carton box/1		carton box/1

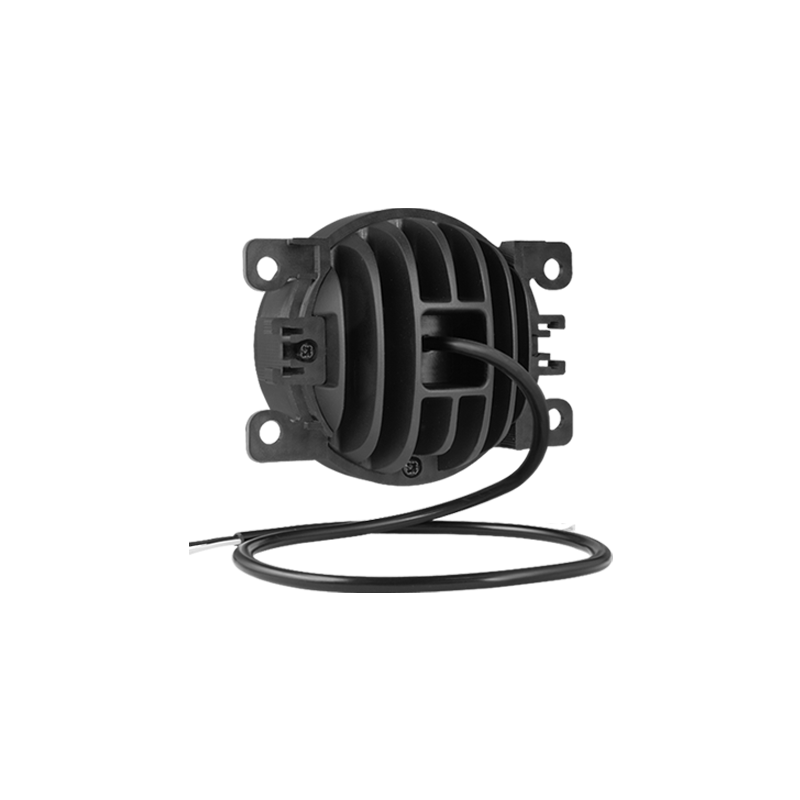

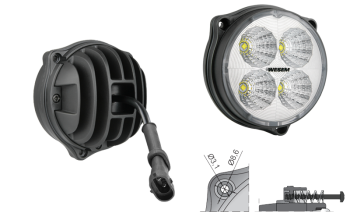

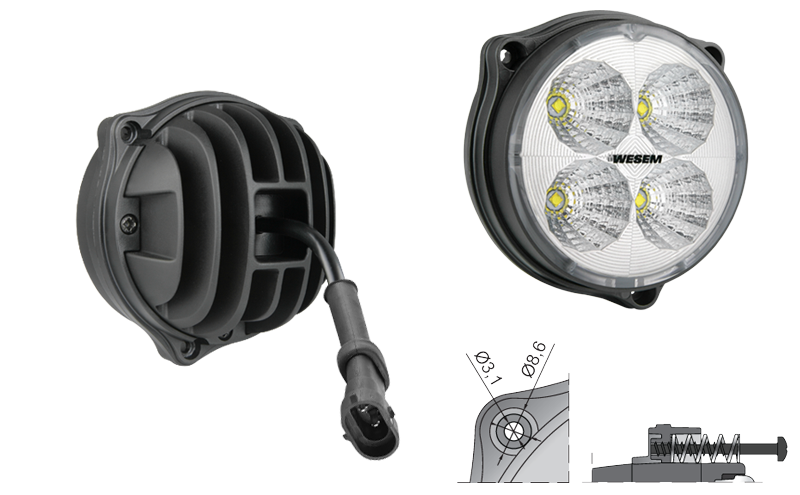

LED work lamp with cable and H9-H11 connector (3 bolt version)

LED work lamp with cable and H9-H11 connector (3 bolt version)

LED work lamp with cable and H9-H11 connector (3 bolt version)

Compare	Part number	Equipment		Quantity
	CRC5K.54820	beam angle 35°, 2000lm - LED module 12V-24V, cable 0,05 m Part number: CRC5K.54820 Quantity: carton box/1		carton box/1

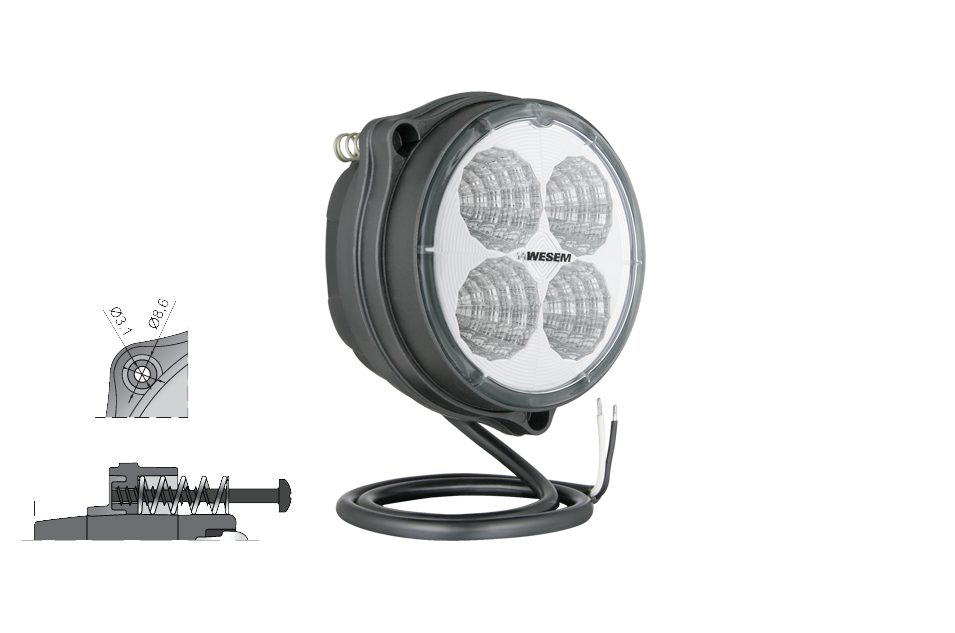

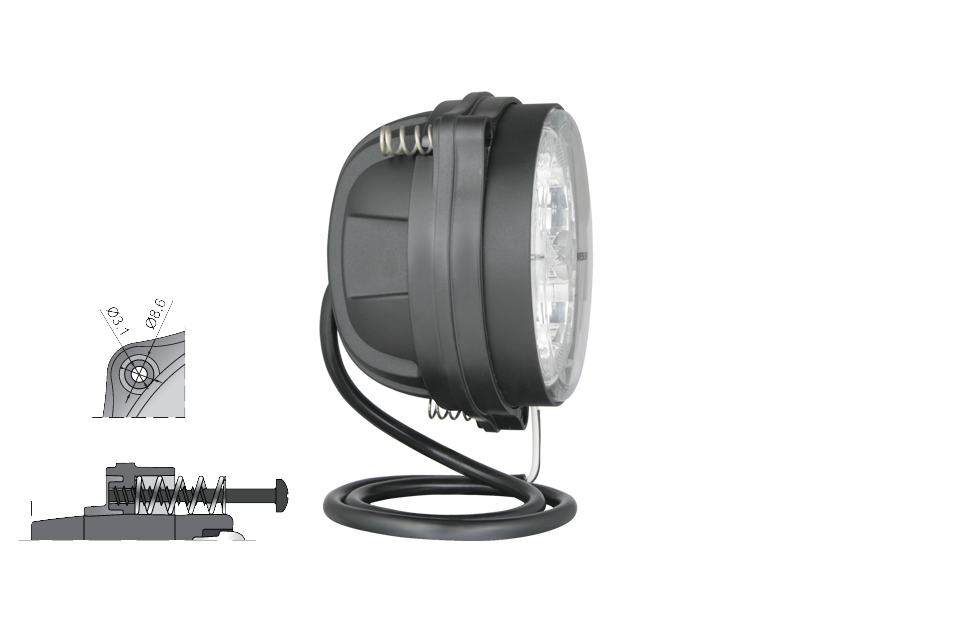

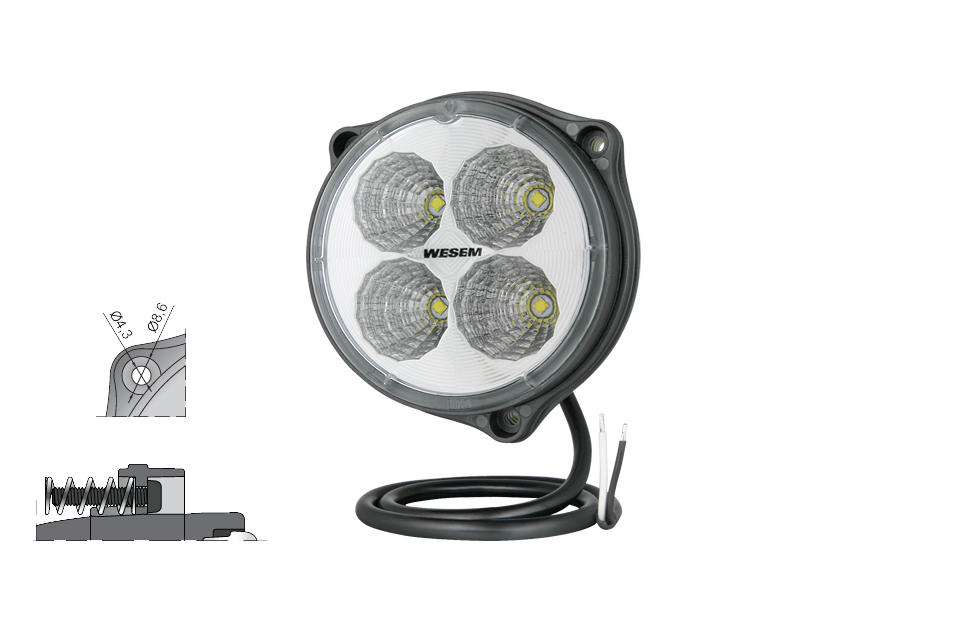

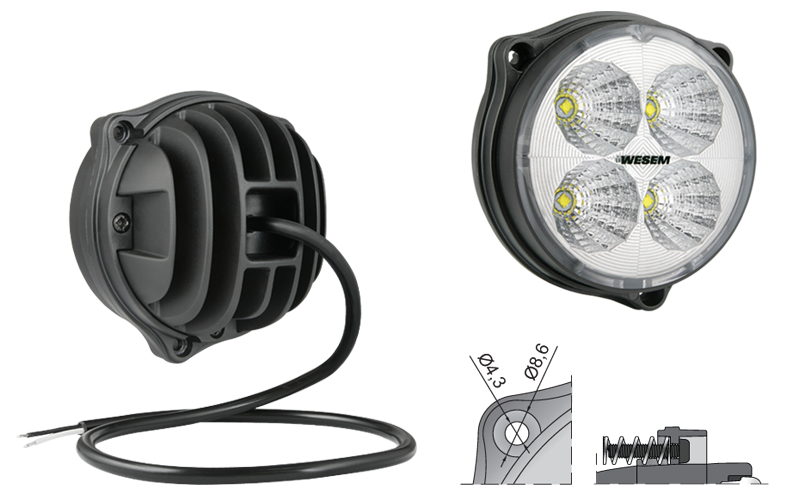

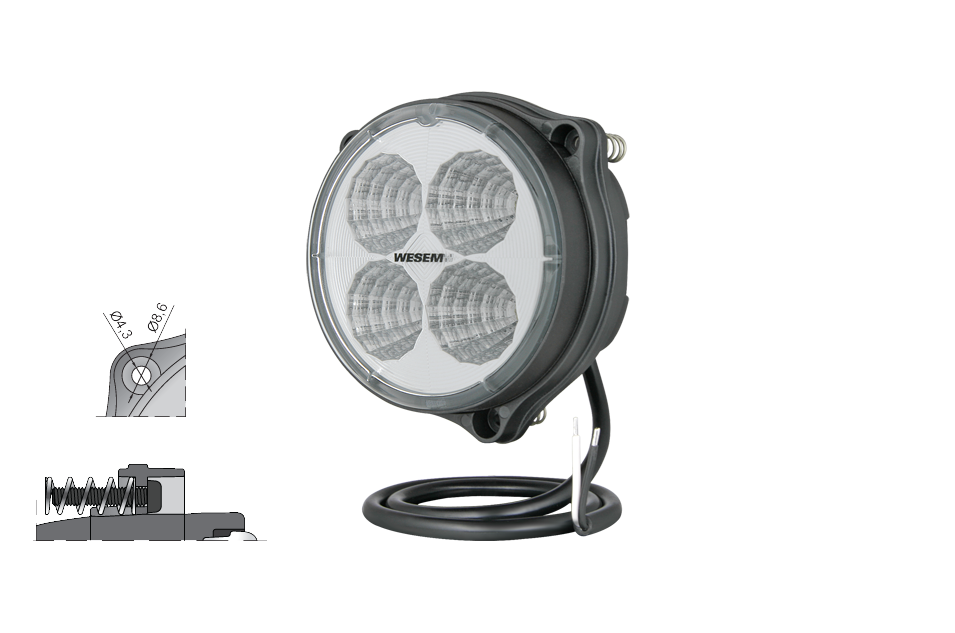

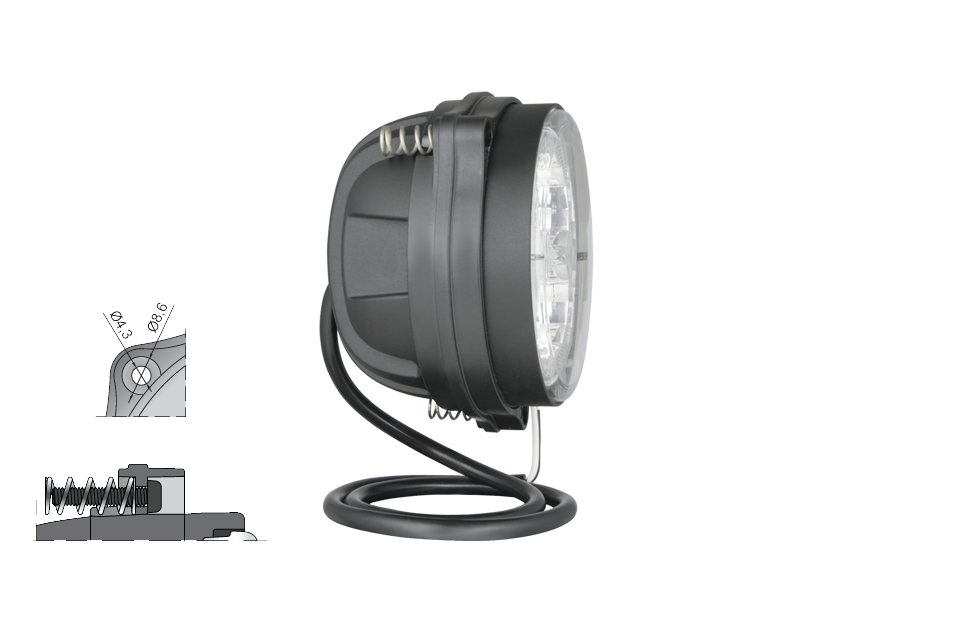

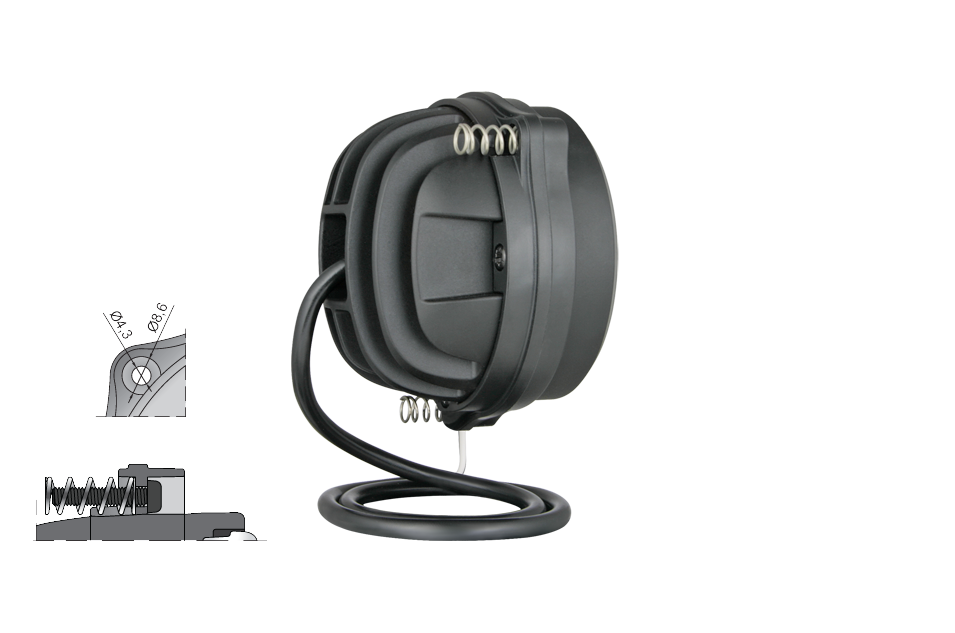

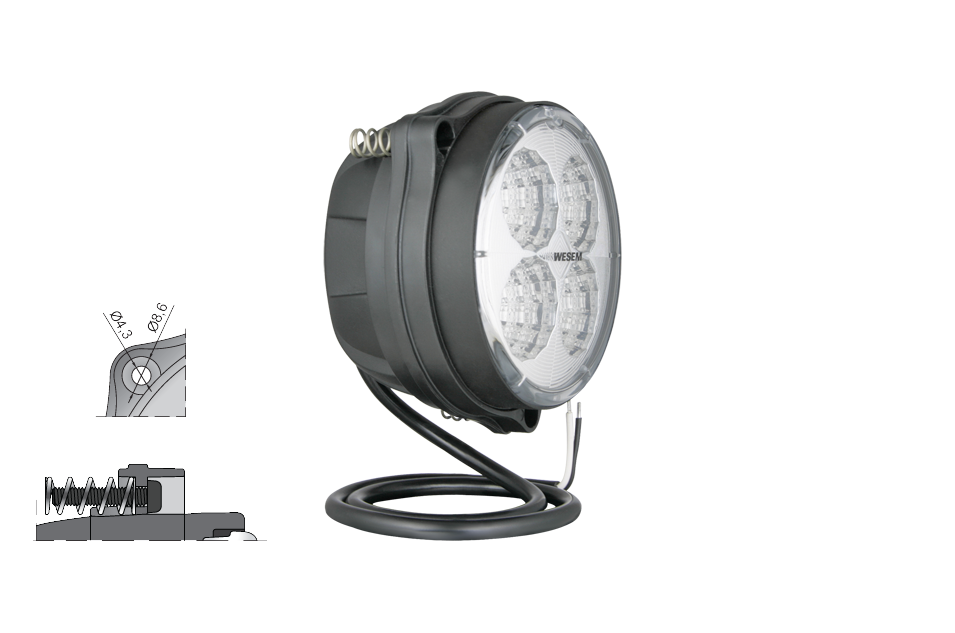

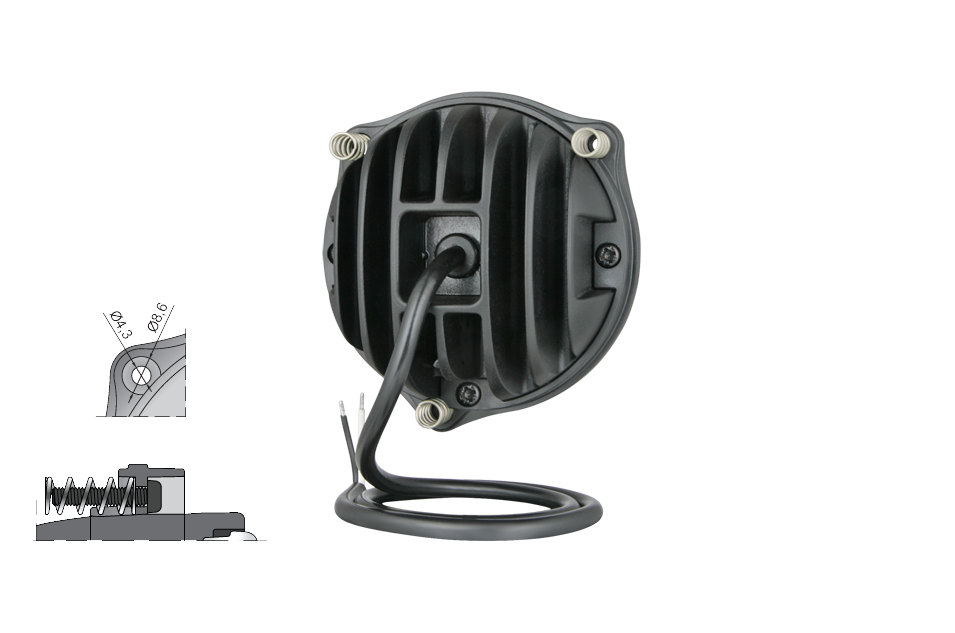

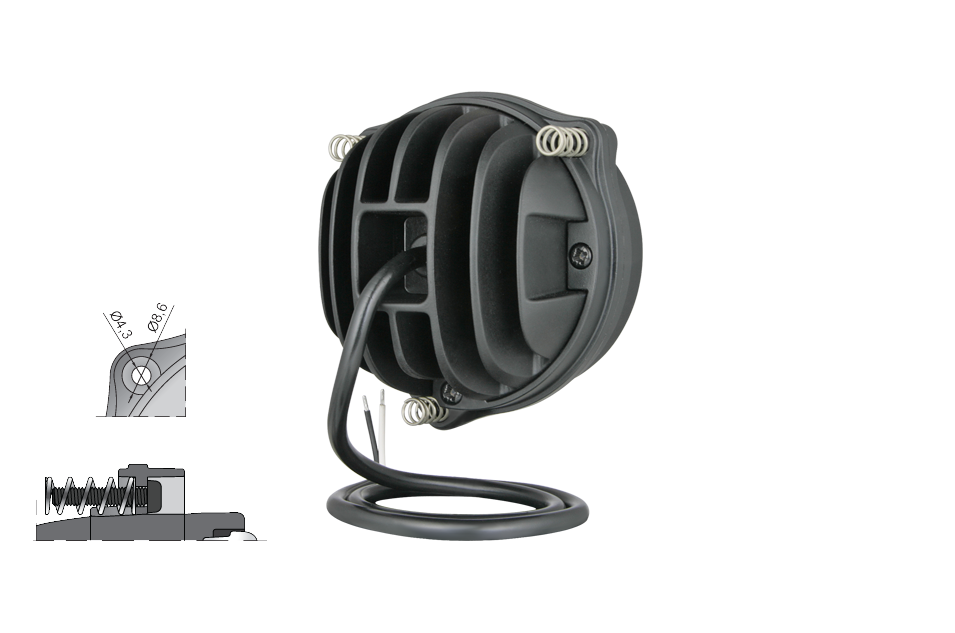

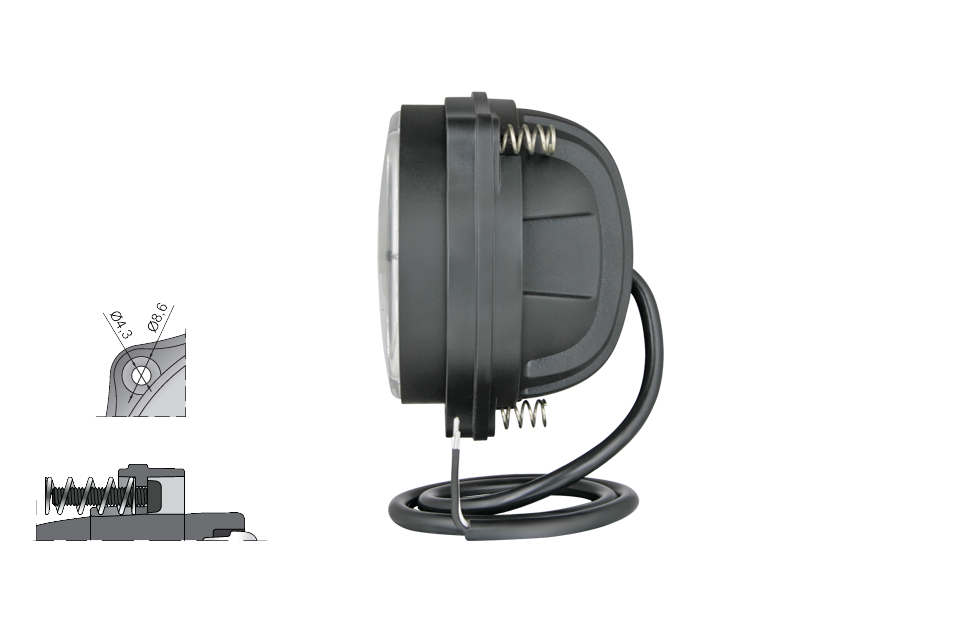

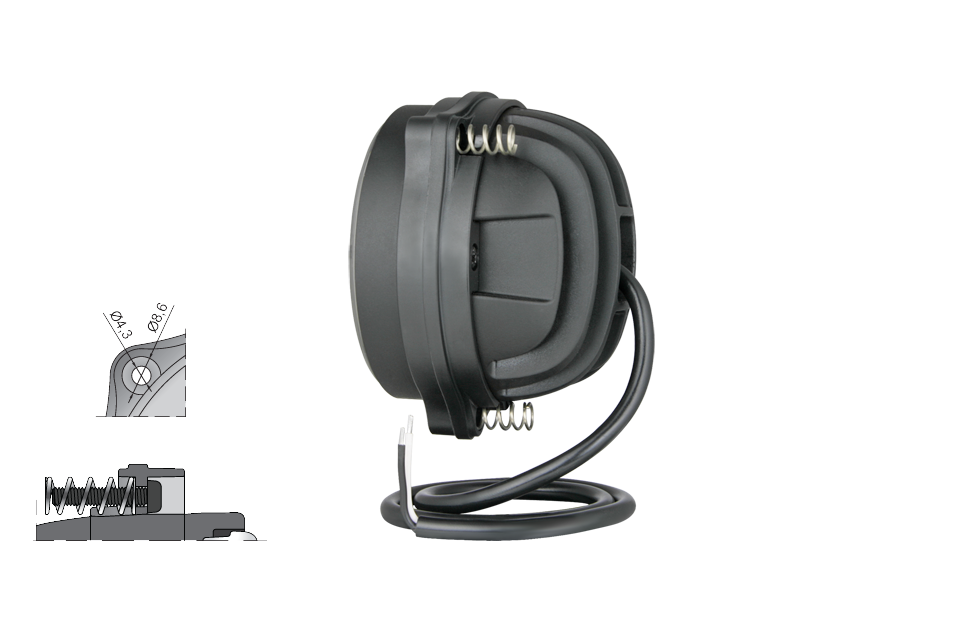

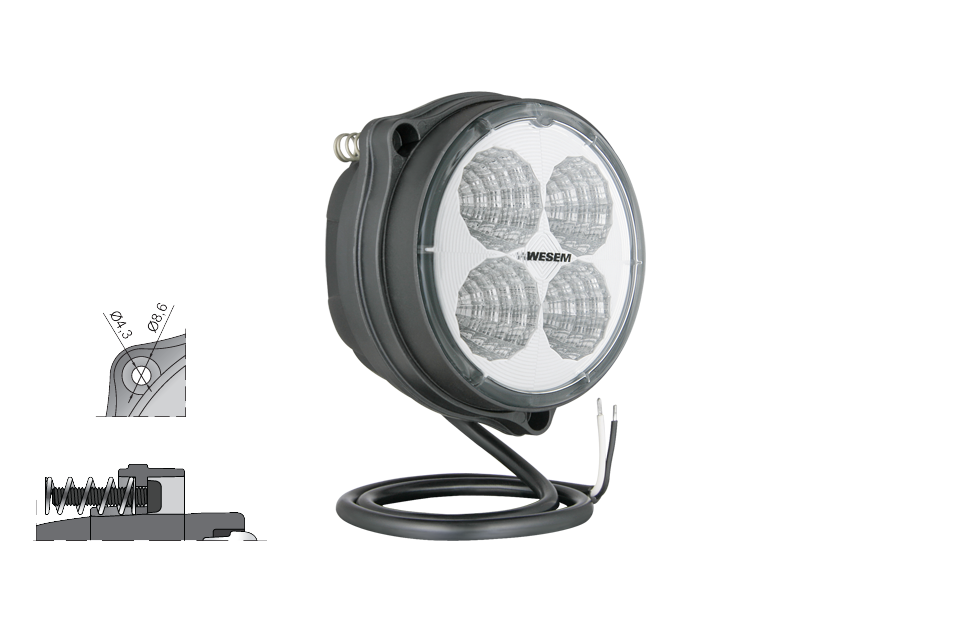

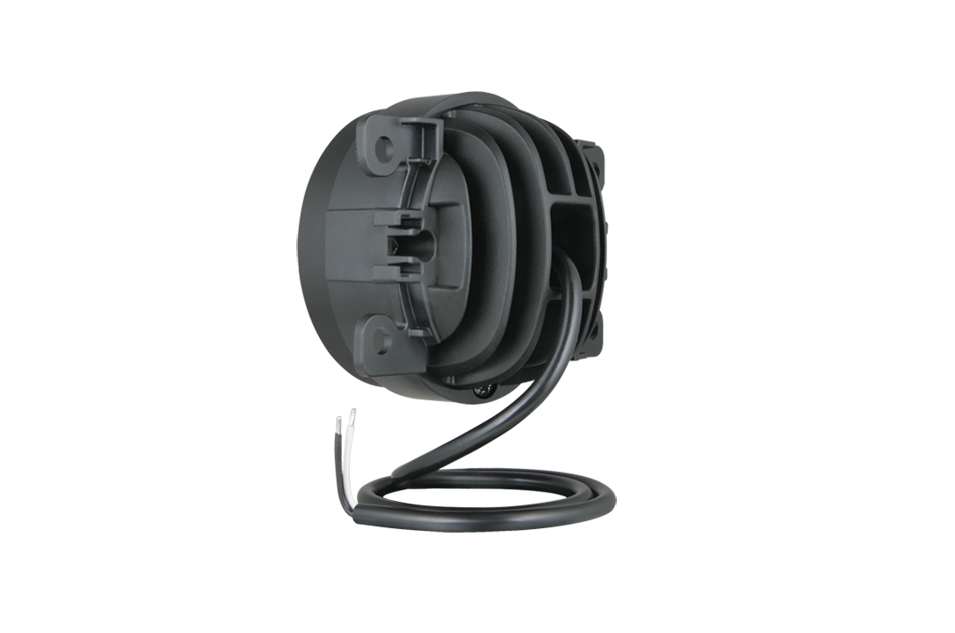

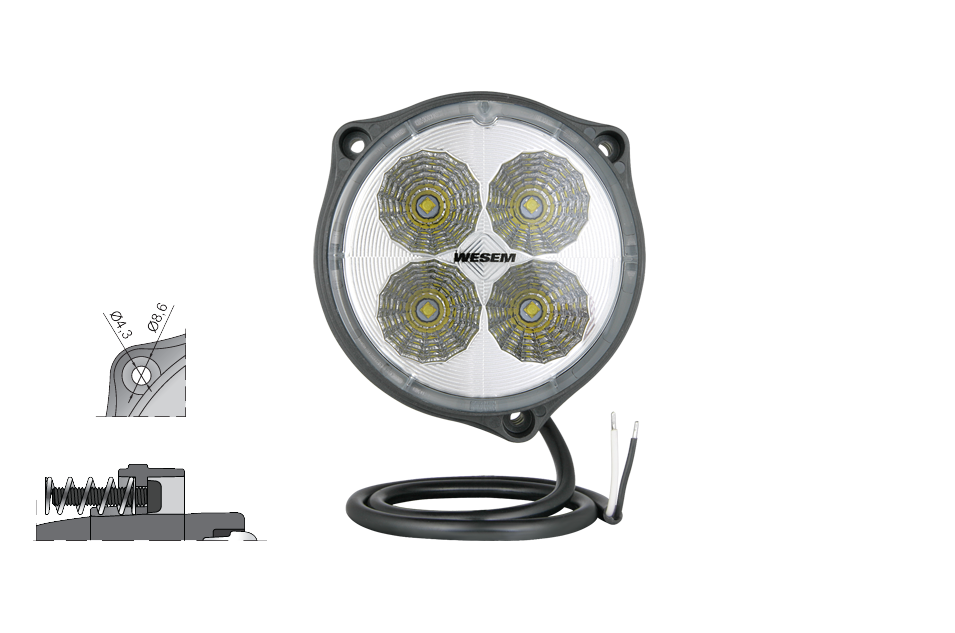

LED work lamp with cable (3 bolt version)

LED work lamp with cable (3 bolt version)

LED work lamp with cable (3 bolt version)

Compare	Part number	Equipment		Quantity
	CRC5D.51622	beam angle 58°, 1500lm - LED module 12V-24V, cable 0,5 m Part number: CRC5D.51622 Quantity: carton box/1		carton box/1
	CRC5C.51522	beam angle 58°, 1000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5C.51522 Quantity: carton box/1		carton box/1

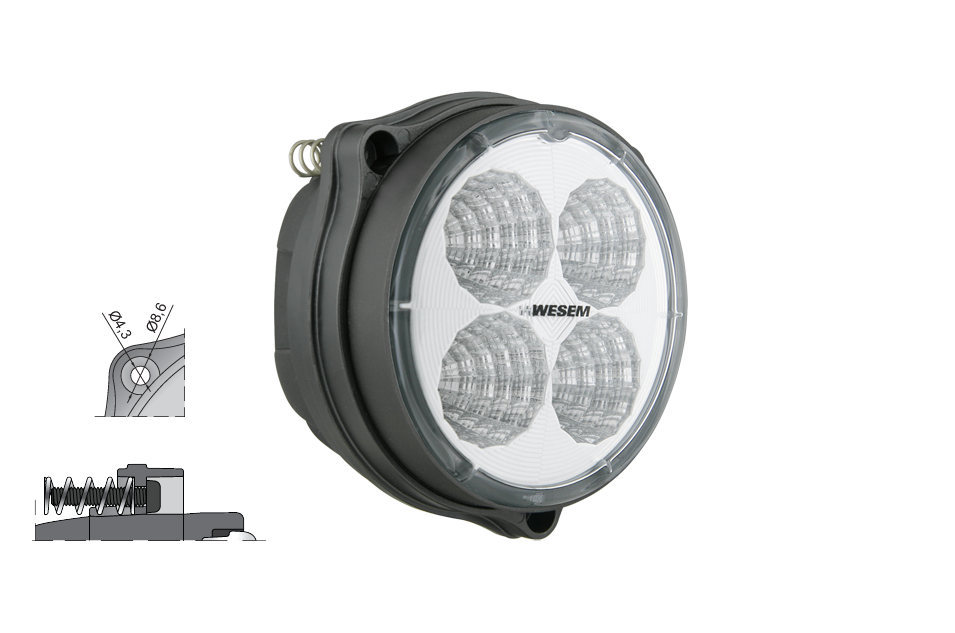

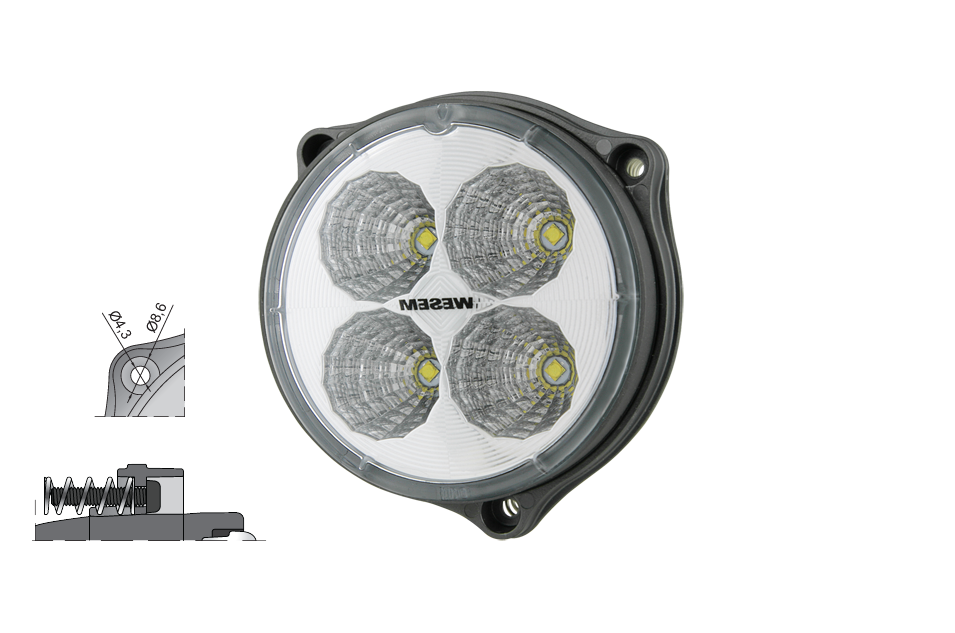

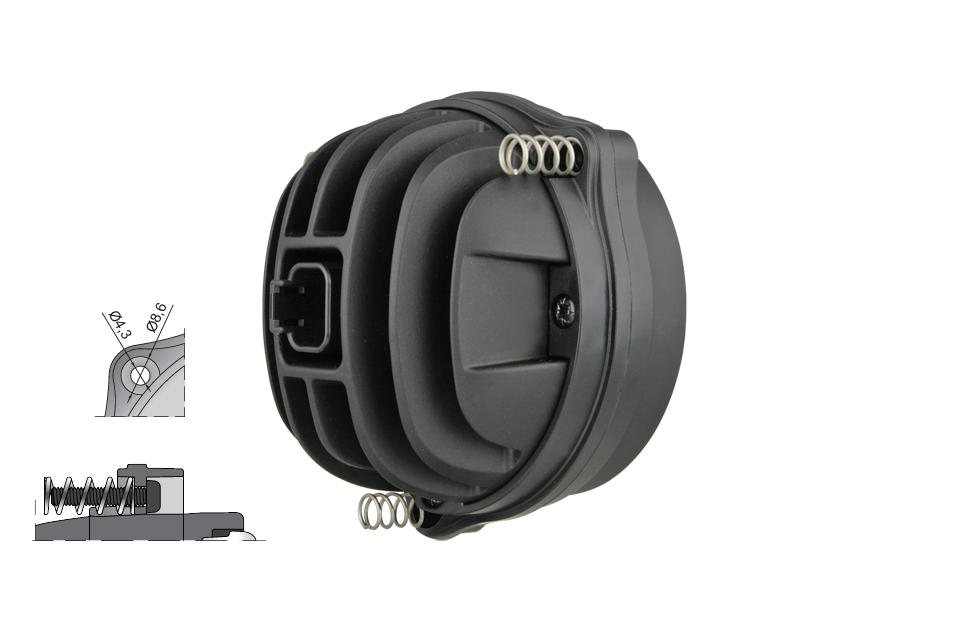

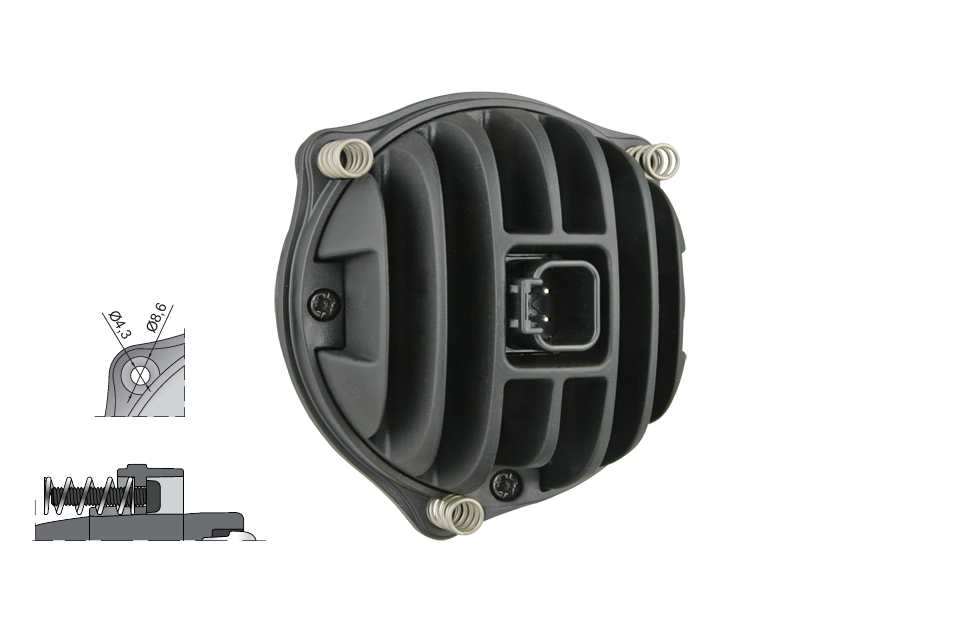

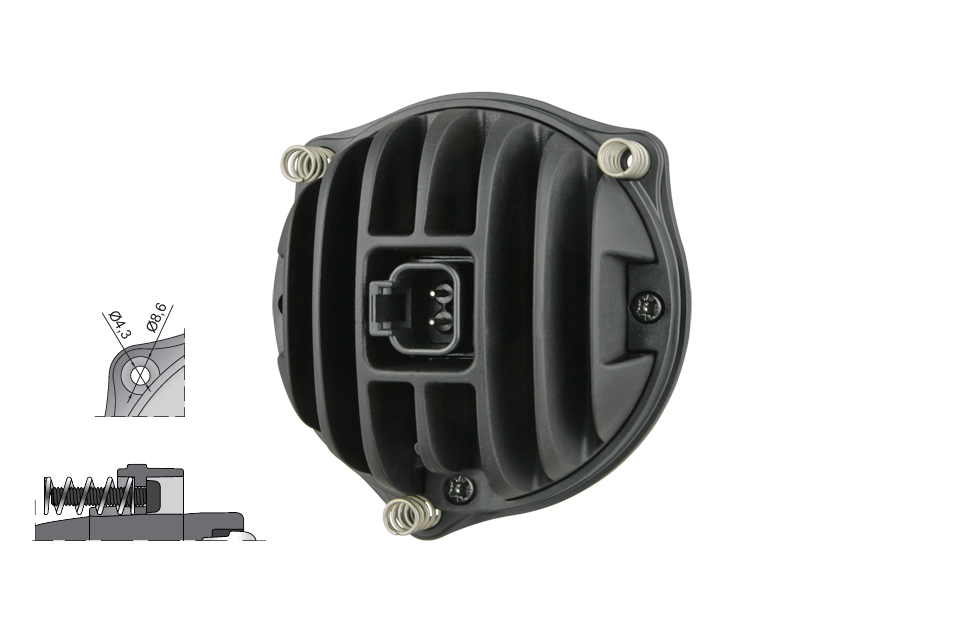

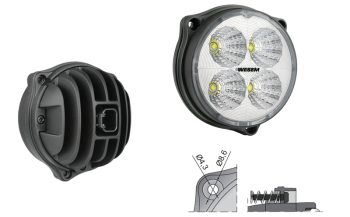

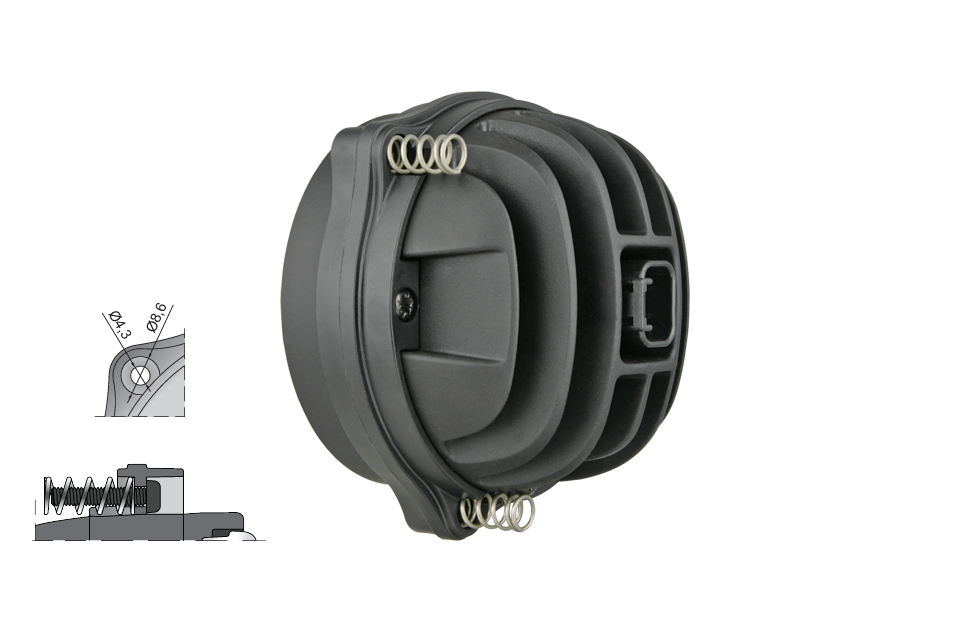

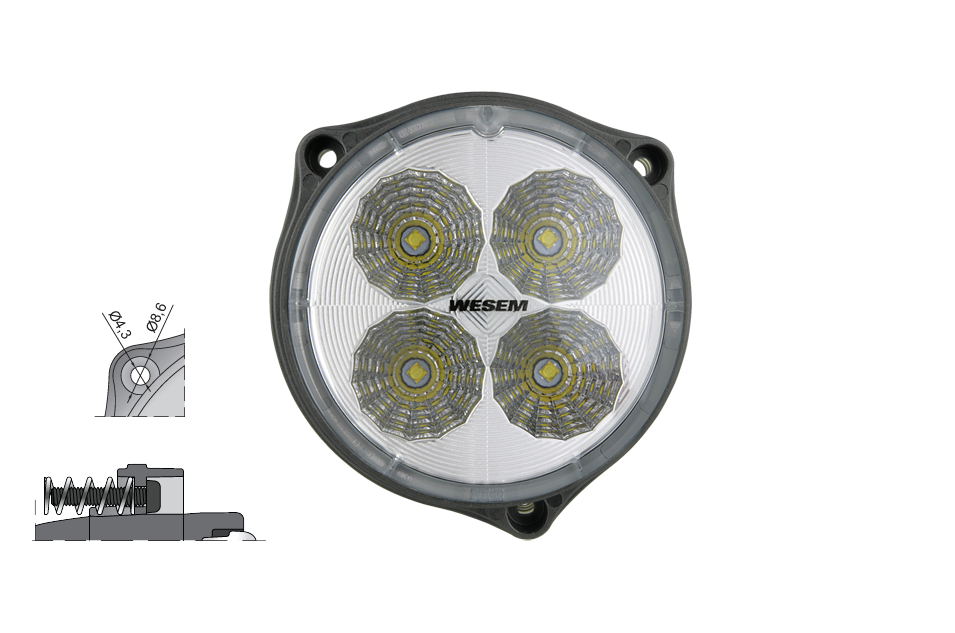

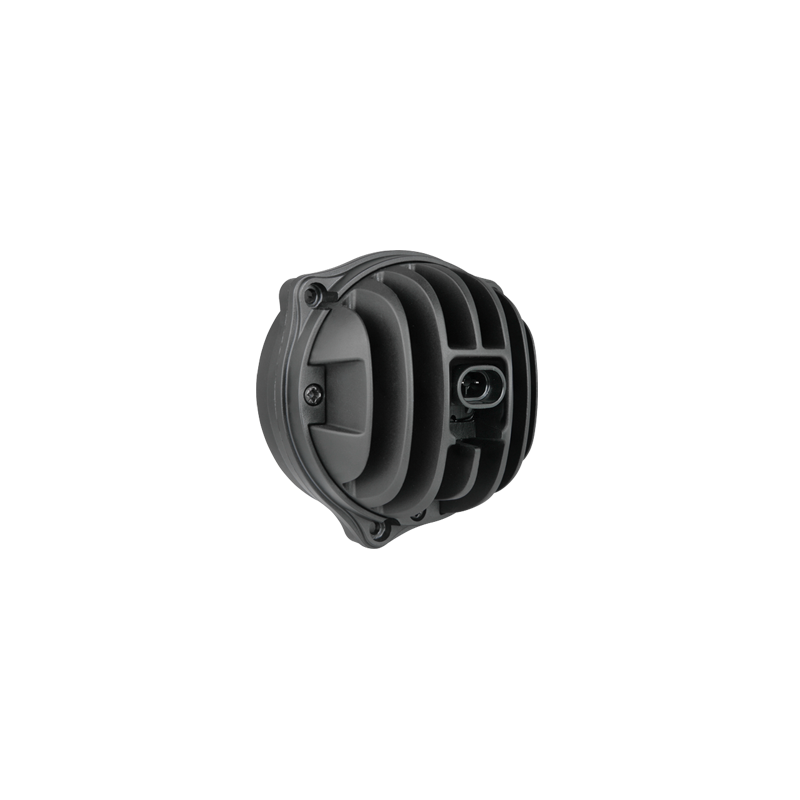

LED work lamp with built-in Deutsch DT04-2P connector (3 bolt version)

LED work lamp with built-in Deutsch DT04-2P connector (3 bolt version)

LED work lamp with built-in Deutsch DT04-2P connector (3 bolt version)

Compare	Part number	Equipment		Quantity
	CRC5D.51624	beam angle 58°, 1500lm - LED module 12V-24V Part number: CRC5D.51624 Quantity: carton box/1		carton box/1
	CRC5C.51524	beam angle 58°, 1000lm - LED module 12V-24V Part number: CRC5C.51524 Quantity: carton box/1		carton box/1

LED work lamp with cable and Deutsch DT04-2P connector (3 bolt version)

LED work lamp with cable and Deutsch DT04-2P connector (3 bolt version)

LED work lamp with cable and Deutsch DT04-2P connector (3 bolt version)

Compare	Part number	Equipment		Quantity
	CRC5H.53326	beam angle 58°, 2000lm - LED module 12V-24V, cable 0,15 m Part number: CRC5H.53326 Quantity: carton box/1		carton box/1
	CRC5D.51626	beam angle 58°, 1500lm - LED module 12V-24V, cable 0,15 m Part number: CRC5D.51626 Quantity: carton box/1		carton box/1
	CRC5C.51526	beam angle 58°, 1000lm - LED module 12V-24V, cable 0,15 m Part number: CRC5C.51526 Quantity: carton box/1		carton box/1

LED work lamp with built-in AMP SuperSeal connector (3 bolt version)

LED work lamp with built-in AMP SuperSeal connector (3 bolt version)

LED work lamp with built-in AMP SuperSeal connector (3 bolt version)

Compare	Part number	Equipment		Quantity
	CRC5K.54828	beam angle 35°, 2000lm - LED module 12V-24V Part number: CRC5K.54828 Quantity: carton box/1		carton box/1
	CRC5H.53328	beam angle 58°, 2000lm - LED module 12V-24V Part number: CRC5H.53328 Quantity: carton box/1		carton box/1
	CRC5D.51628	beam angle 58°, 1500lm - LED module 12V-24V Part number: CRC5D.51628 Quantity: carton box/1		carton box/1
	CRC5C.51528	beam angle 58°, 1000lm - LED module 12V-24V Part number: CRC5C.51528 Quantity: carton box/1		carton box/1

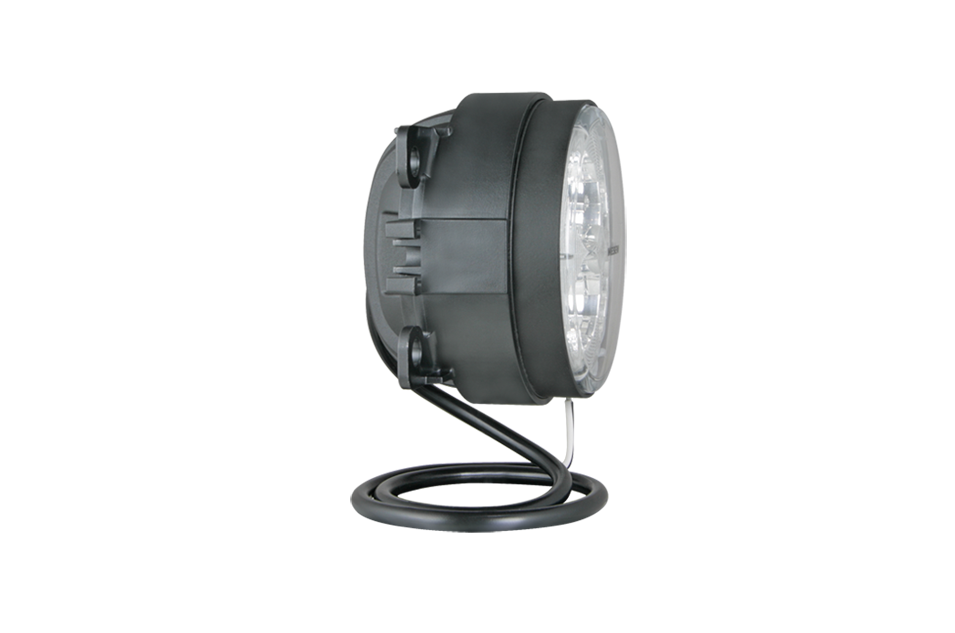

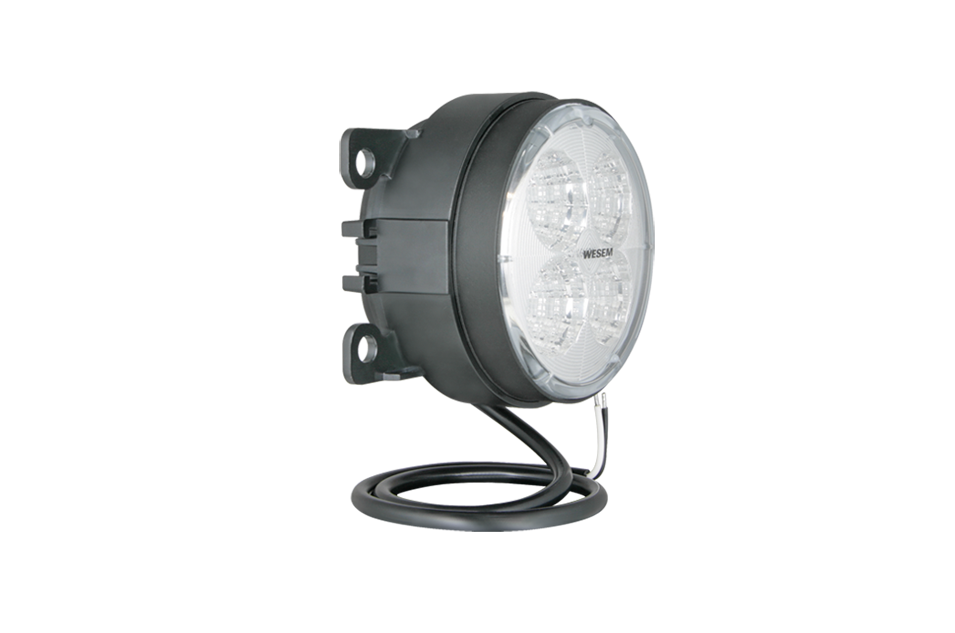

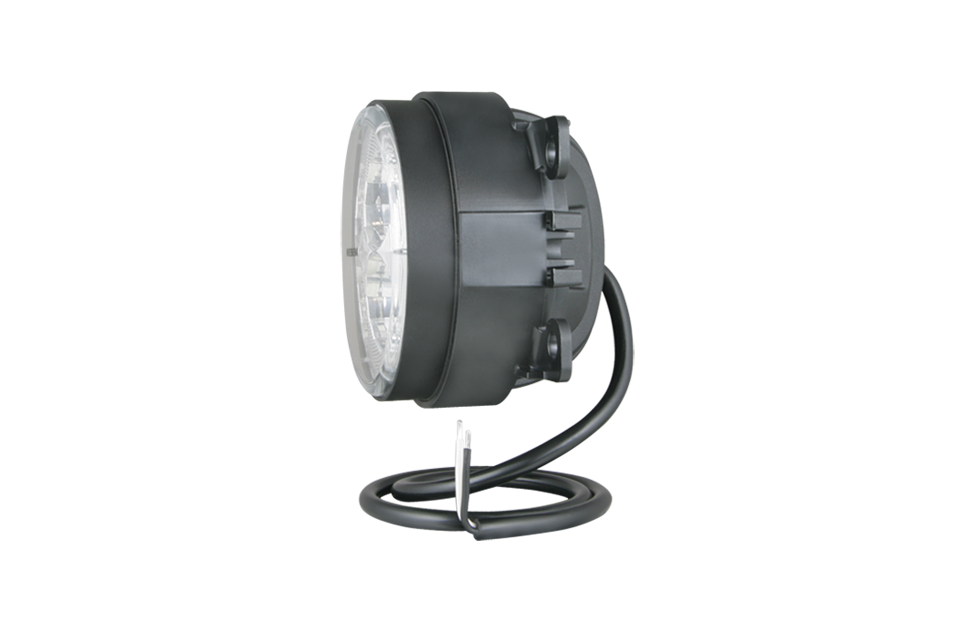

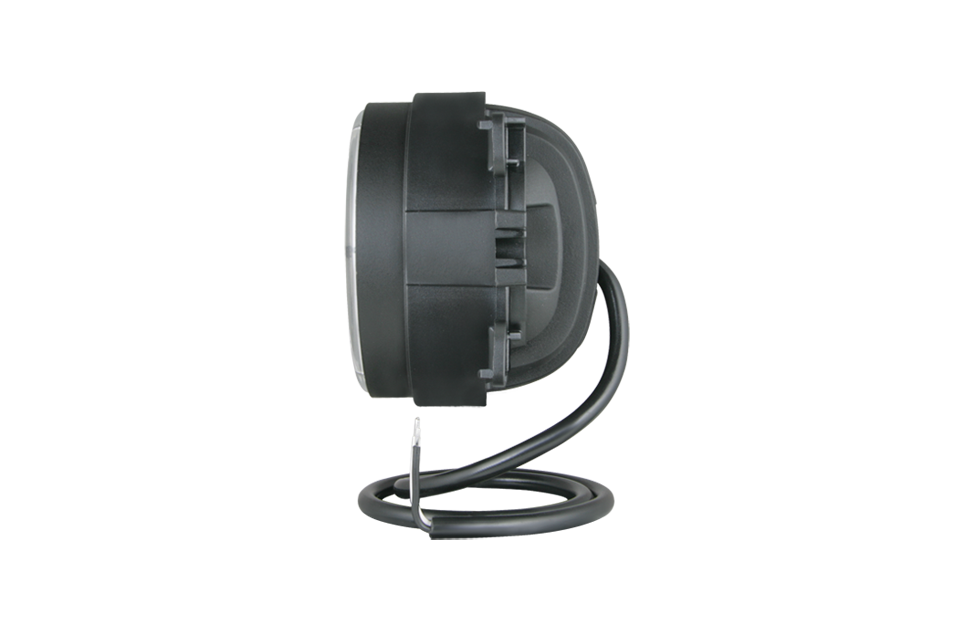

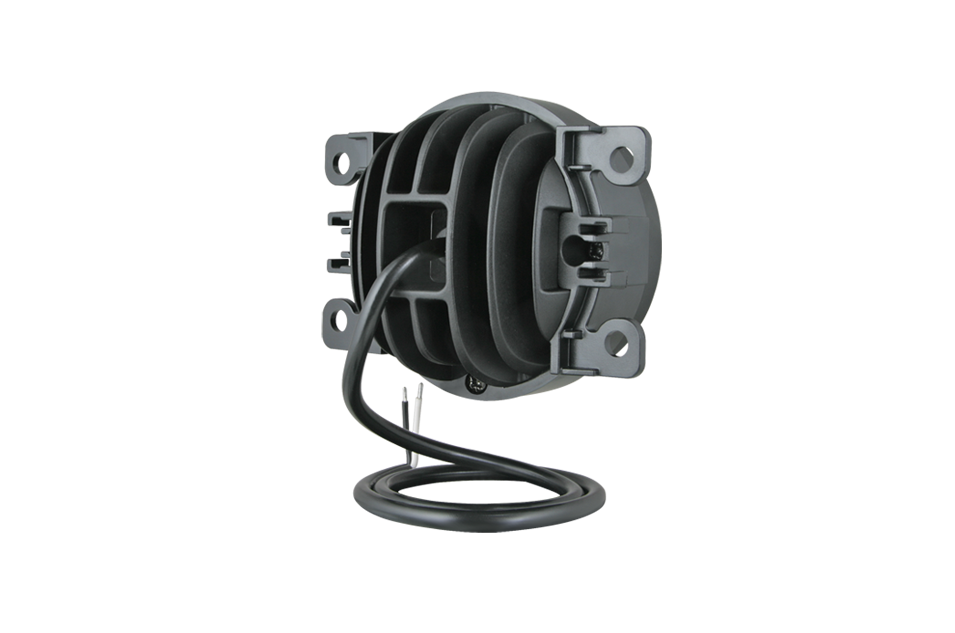

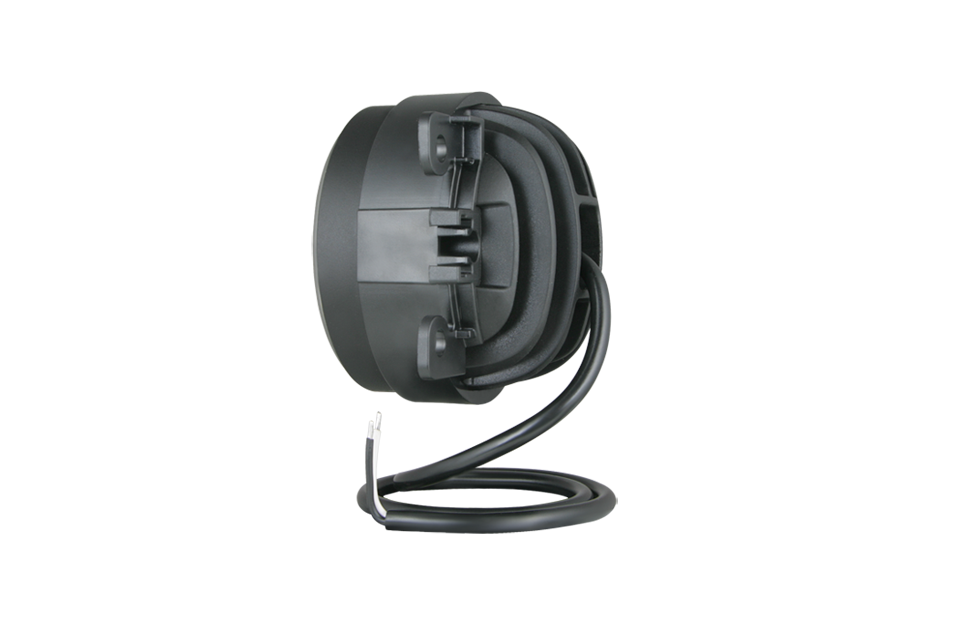

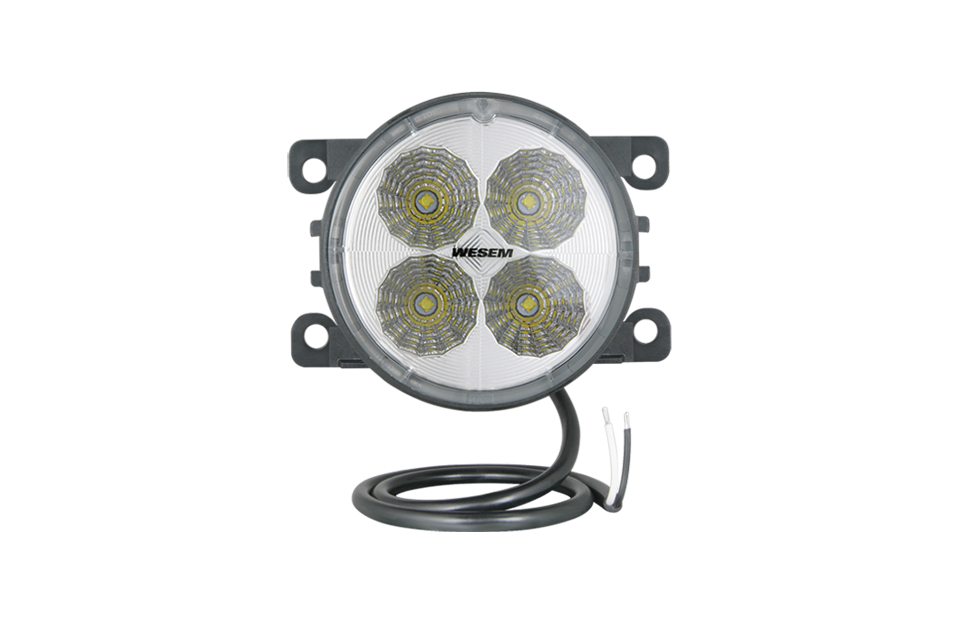

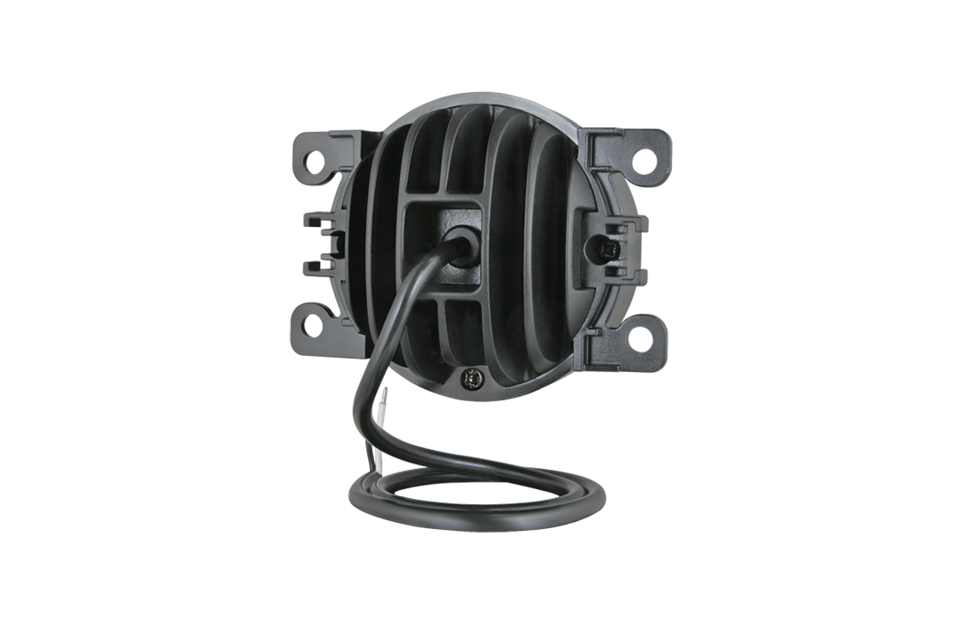

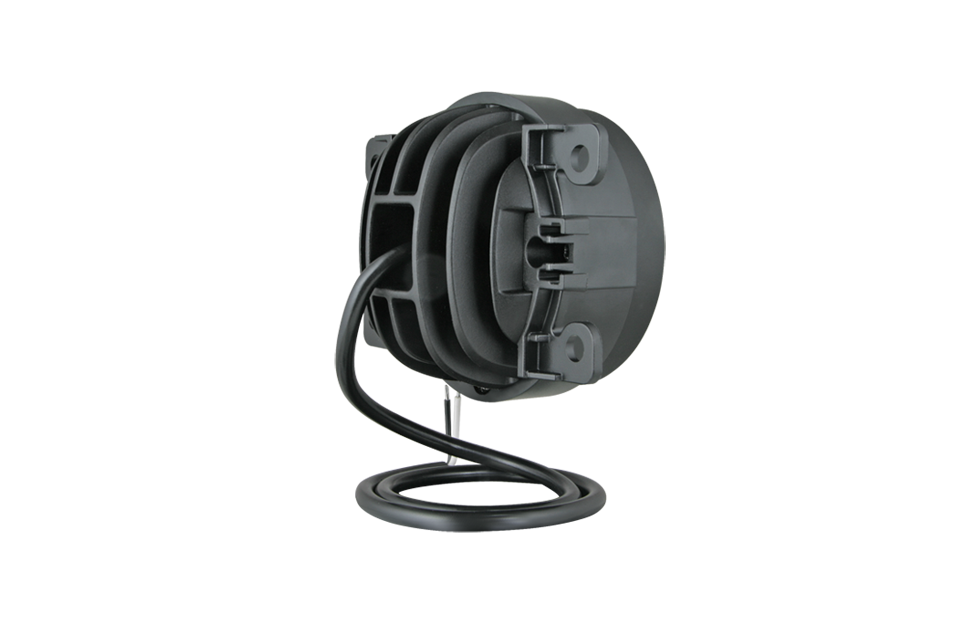

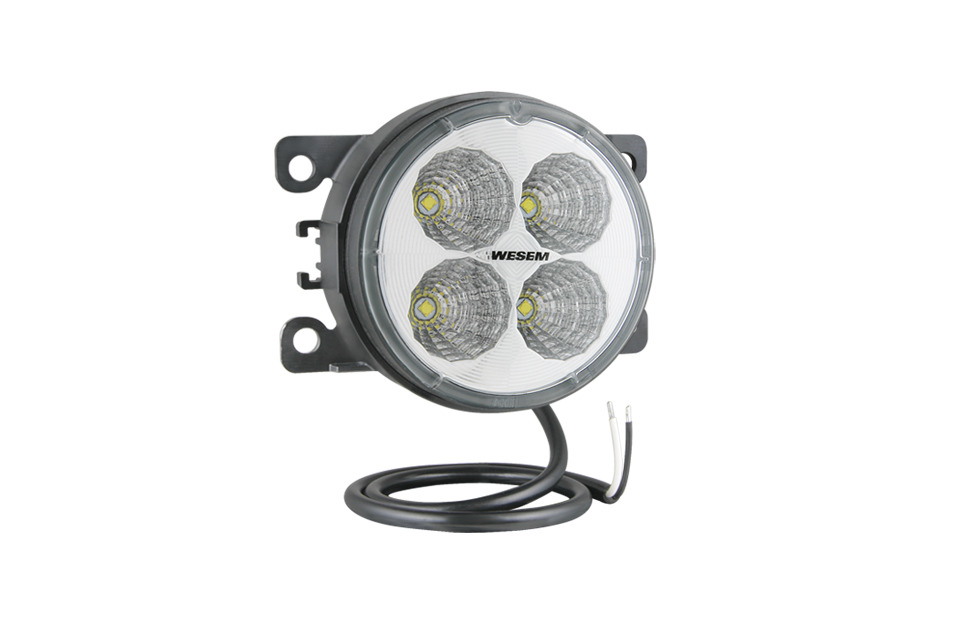

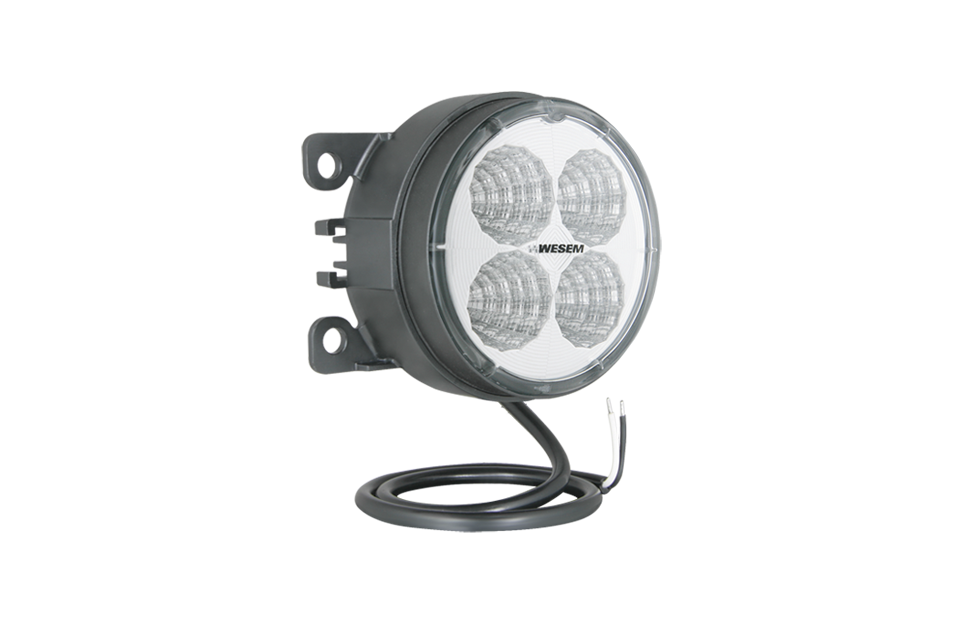

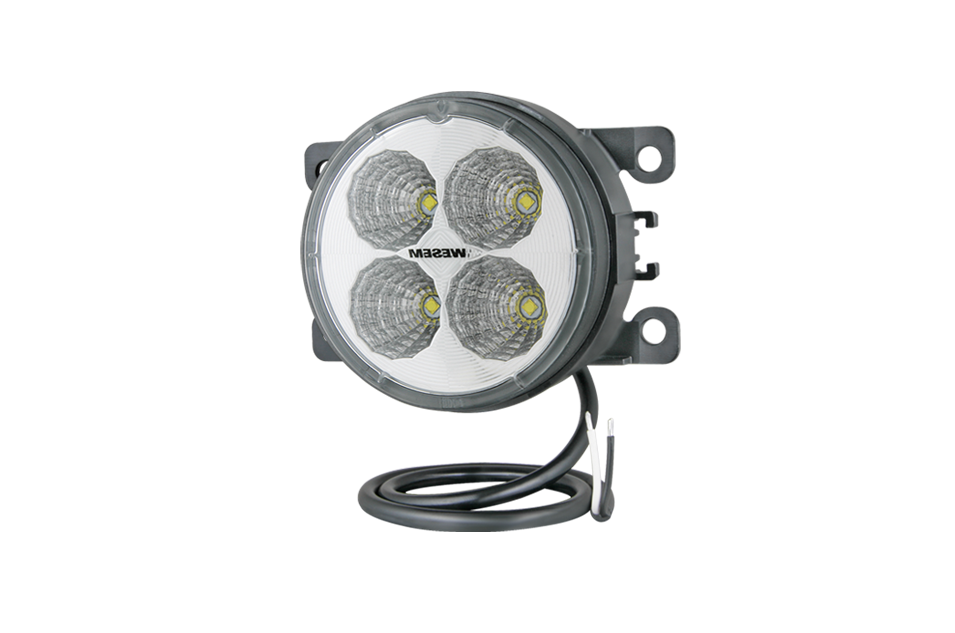

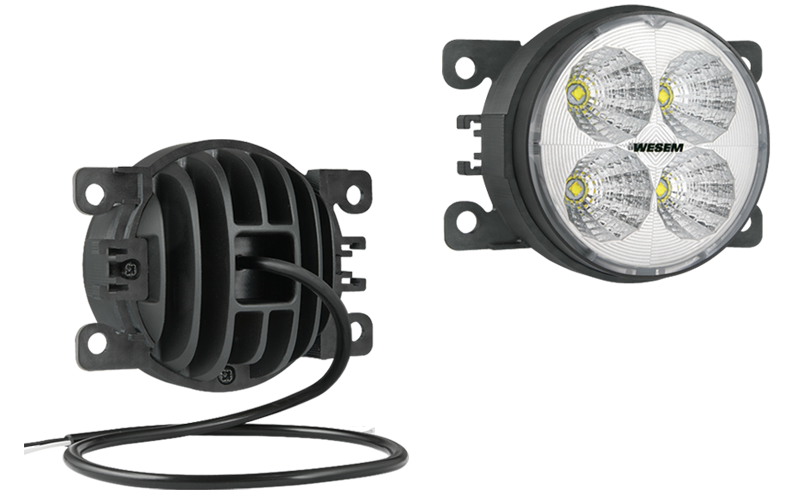

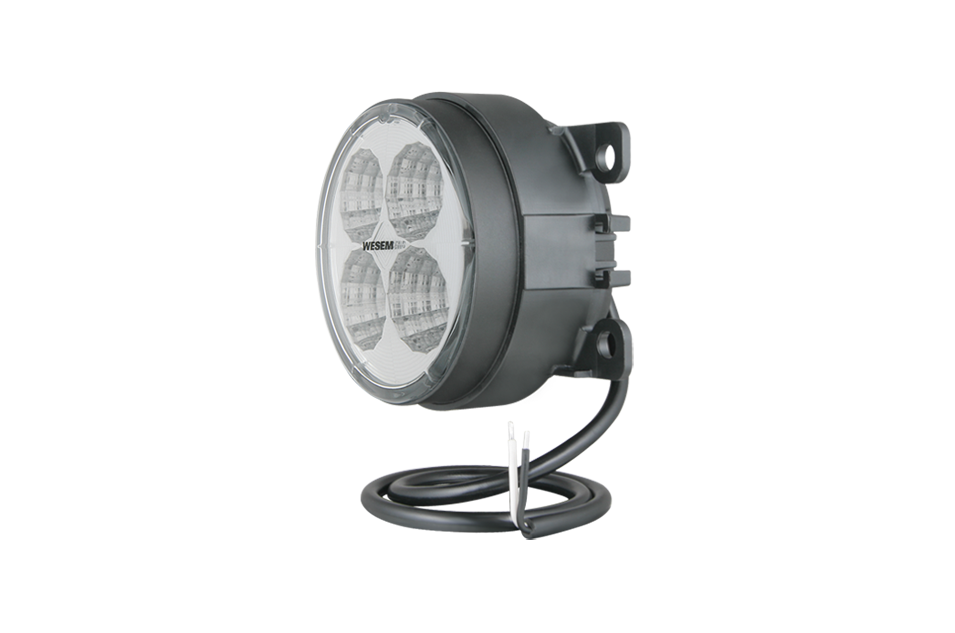

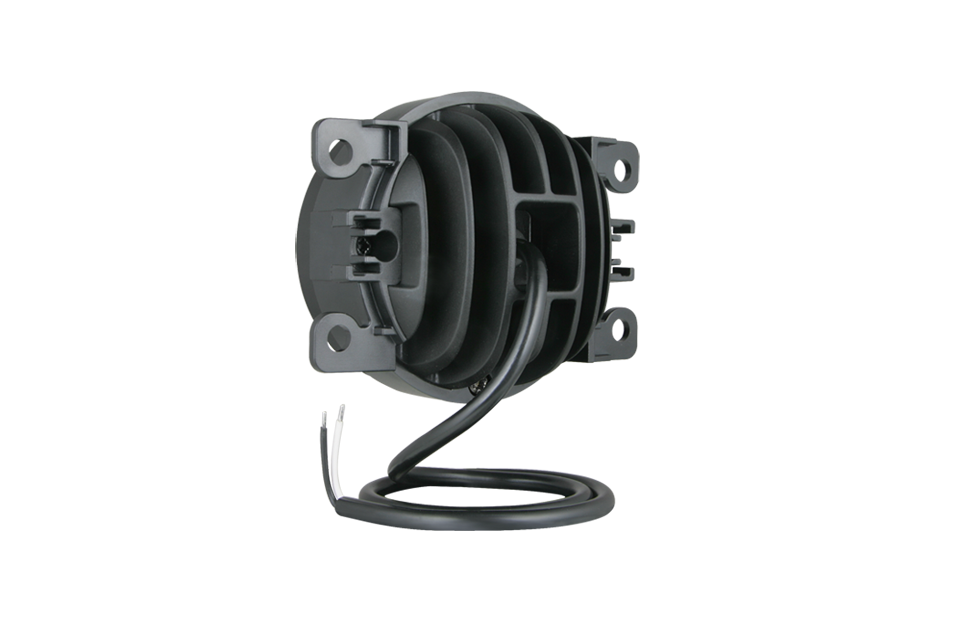

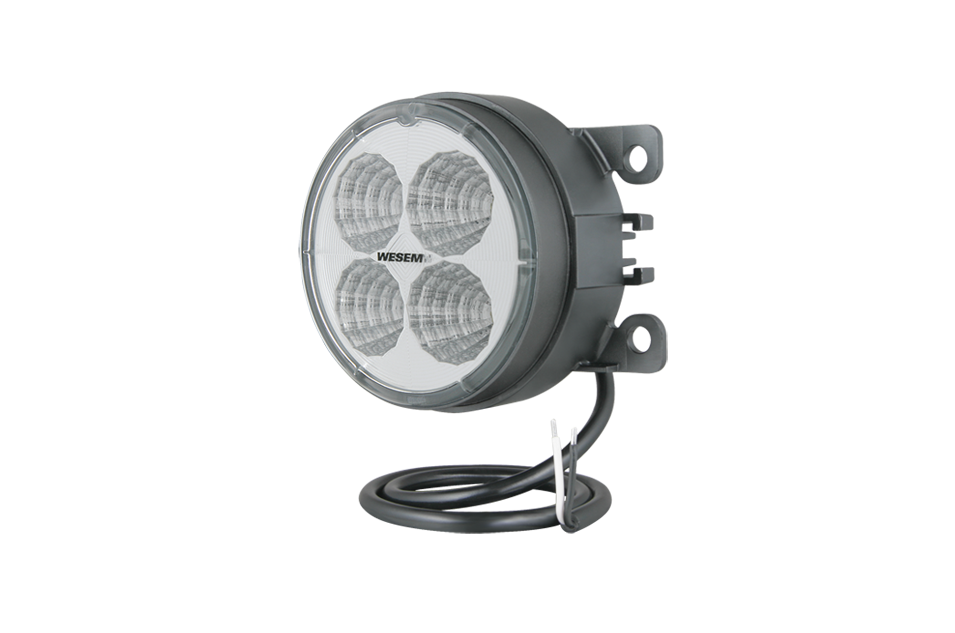

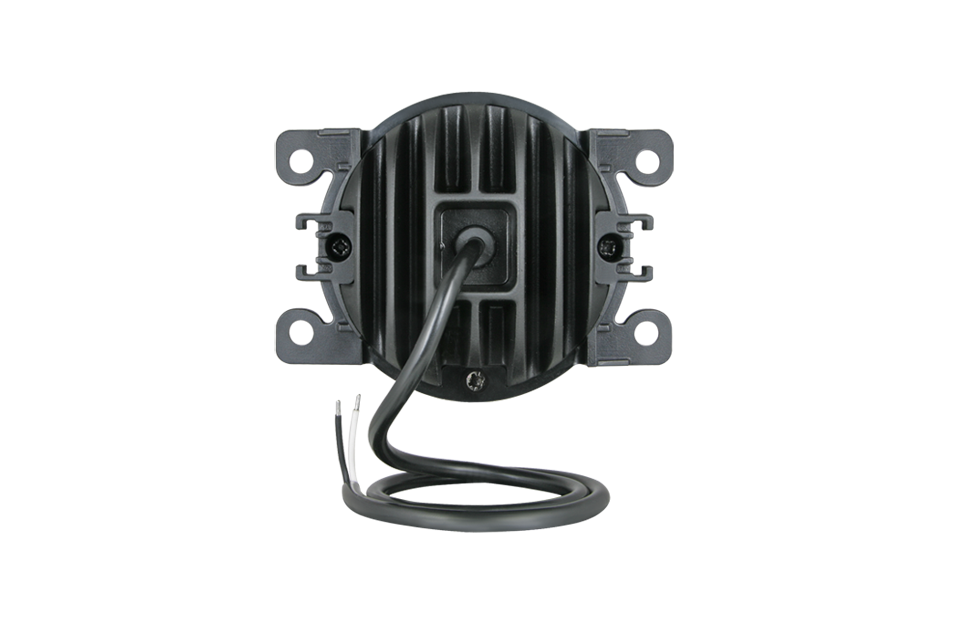

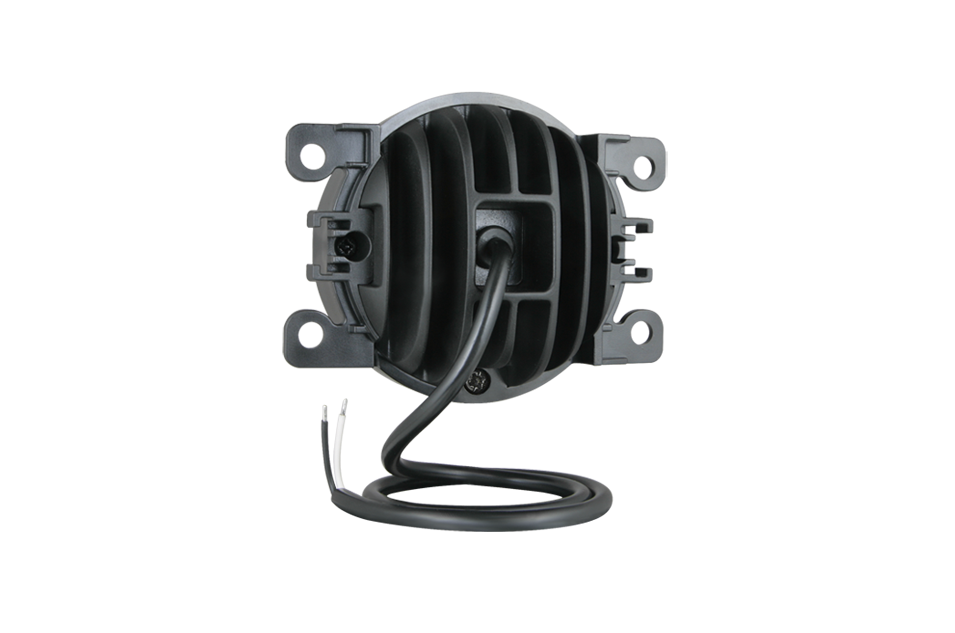

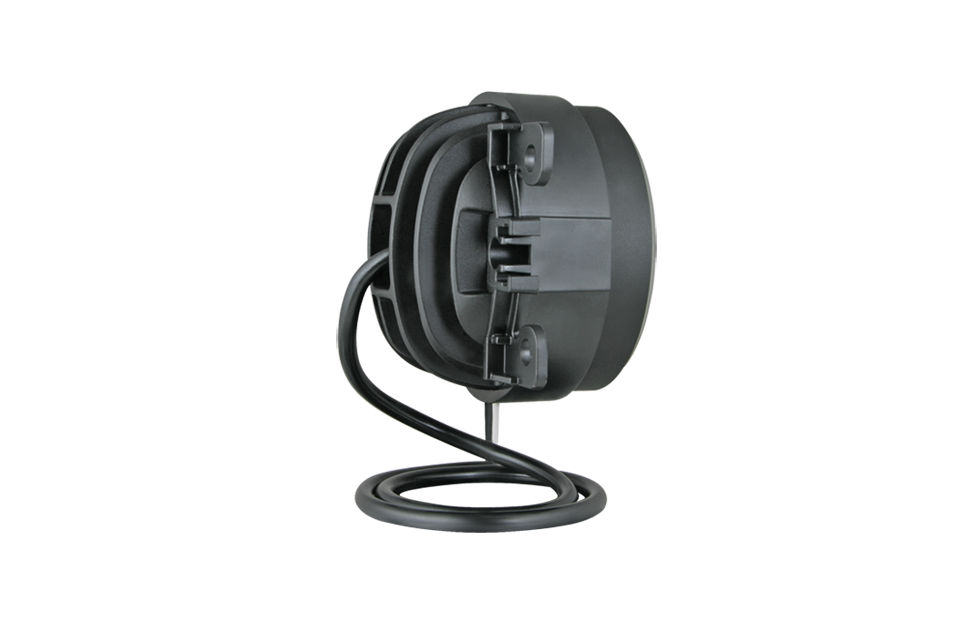

LED work lamp with cable (4 bolt version)

LED work lamp with cable (4 bolt version)

LED work lamp with cable (4 bolt version)

Compare	Part number	Equipment		Quantity
	CRC5H.53321	beam angle 58°, 2000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5H.53321 Quantity: carton box/1		carton box/1
	CRC5D.51621	beam angle 58°, 1500lm - LED module 12V-24V, cable 0,5 m Part number: CRC5D.51621 Quantity: carton box/1		carton box/1
	CRC5C.51521	beam angle 58°, 1000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5C.51521 Quantity: carton box/1		carton box/1
