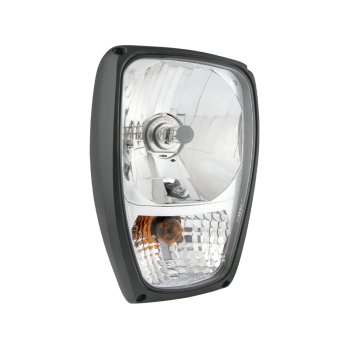

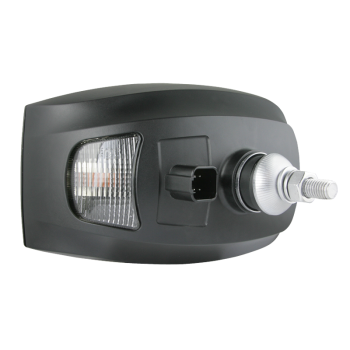

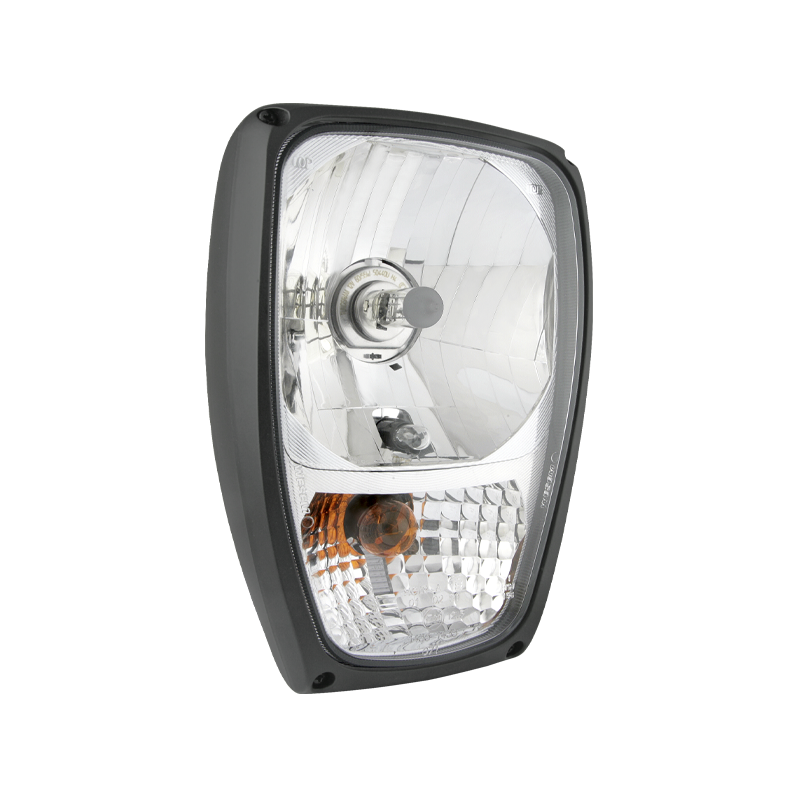

WESEM
Dimensions 225x150x137
Light functions passing, driving, position, direction indicator
Traffic right-hand
Rated power 75/70W, 5W, 21W
Light source H4, W5W, PY21
Supply voltage 12V-24V DC
IP rating IP66
Homologation E20
Reference mark 12.5
  Catalogue page

Product versions

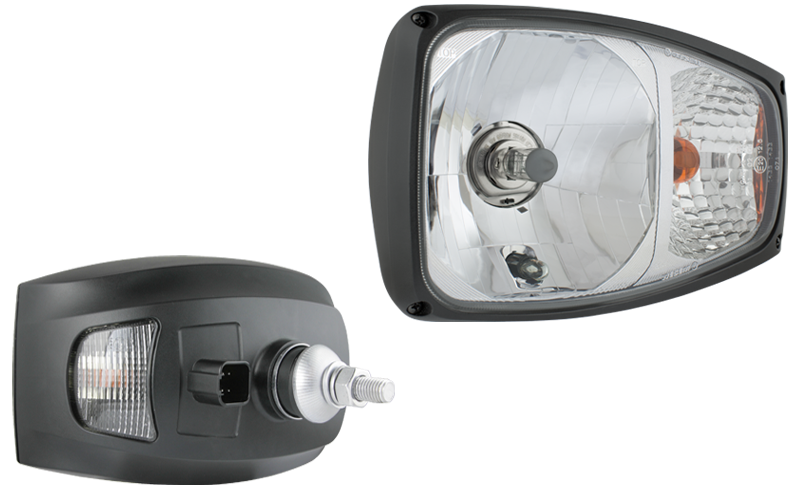

Headlamp, H4 type, with DT04-6P connector - right

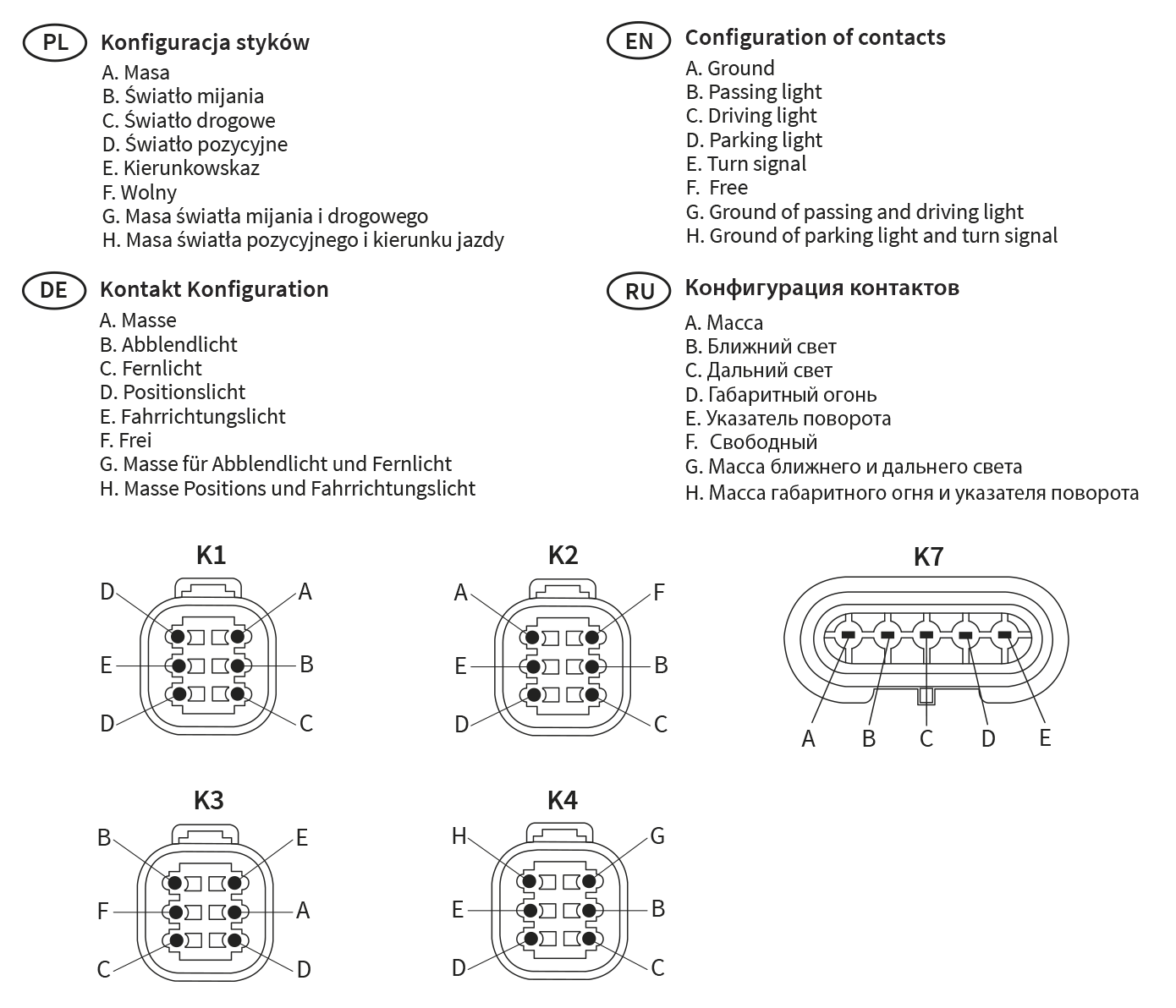

Equipment
K1 - without bulbs
K1 - bulb H4 12V, bulb W5W, bulb PY21W 12V
K2 - bulb H4 12V, bulb W5W, bulb PY21W 12V
K3 - bulb H4 12V, bulb W5W, bulb PY21W 12V

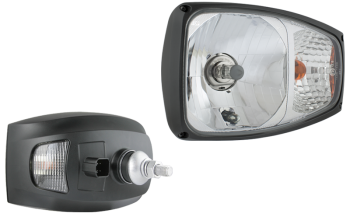

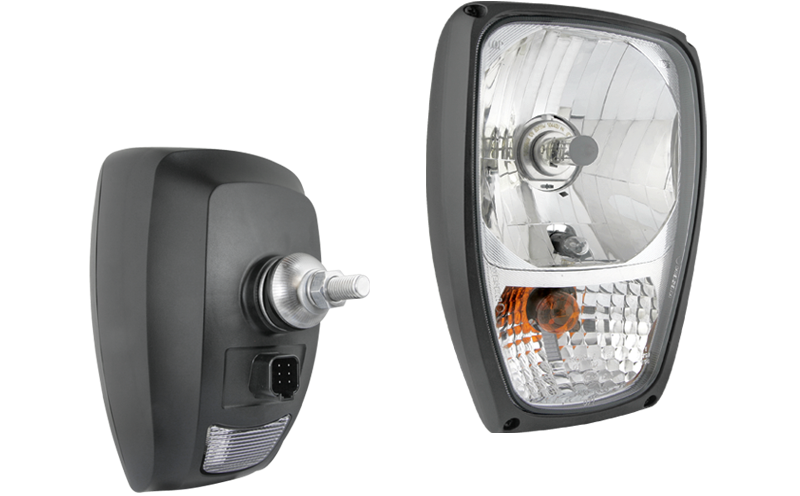

Headlamp, H4 type, with DT04-6P connector - left

Equipment
K1 - without bulbs
K1 - bulb H4 12V, bulb W5W, bulb PY21W 12V
K2 - bulb H4 12V, bulb W5W, bulb PY21W 12V
K3 - bulb H4 12V, bulb W5W, bulb PY21W 12V

Headlamp, H4 type, with DT04-6P connector - right / left

Equipment
K1 - without bulbs
K1 - bulb H4 12V, bulb W5W, bulb PY21W 12V
K2 - bulb H4 12V, bulb W5W, bulb PY21W 12V
K3 - bulb H4 12V, bulb W5W, bulb PY21W 12V
K5 - without bulbs

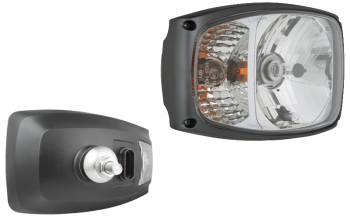

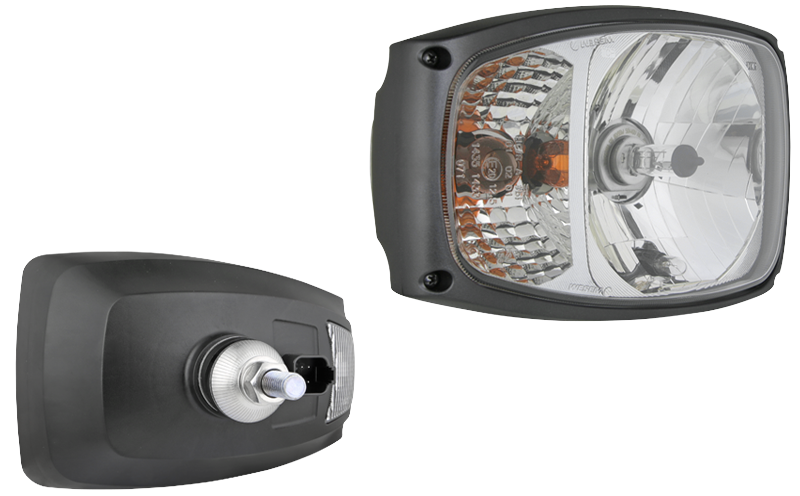

Headlamp, H4 type, with AMP SuperSeal connector - right

Equipment
K7 - without bulbs

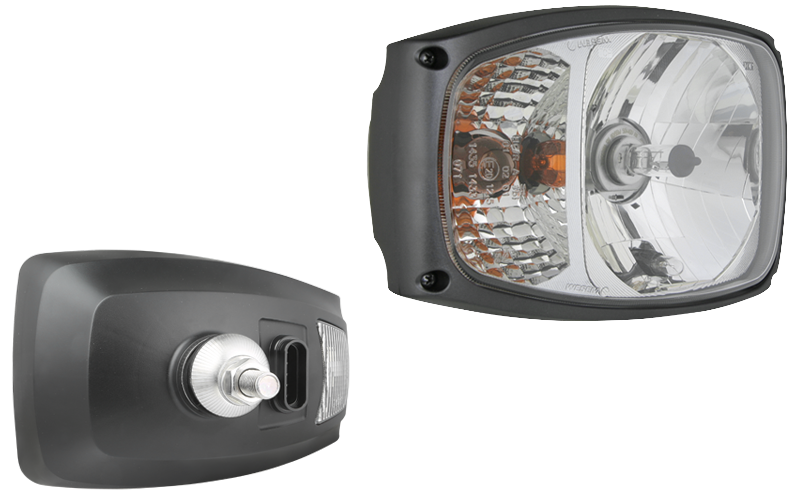

Headlamp, H4 type, with AMP SuperSeal connector - left

Equipment
K7 - without bulbs

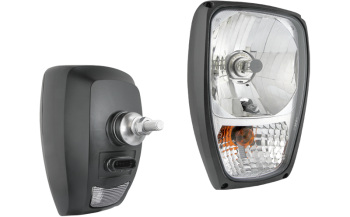

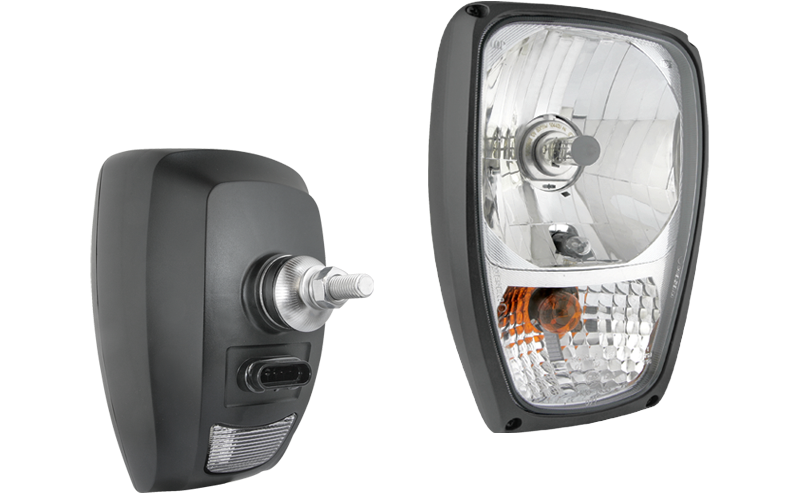

Headlamp, H4 type, with AMP SuperSeal connector - right / left

Equipment
K7 - without bulbs
