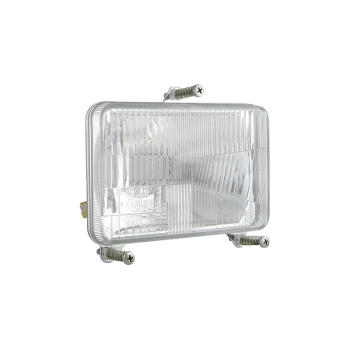

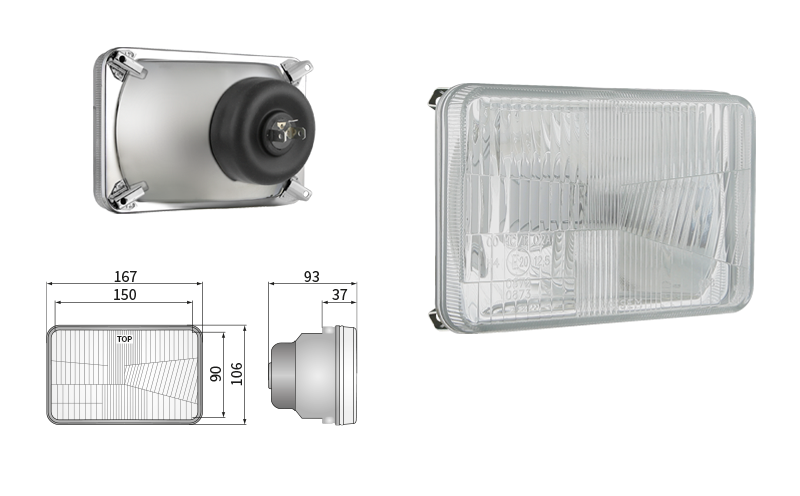

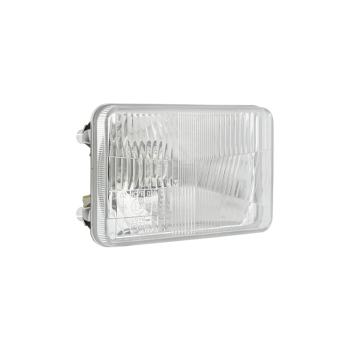

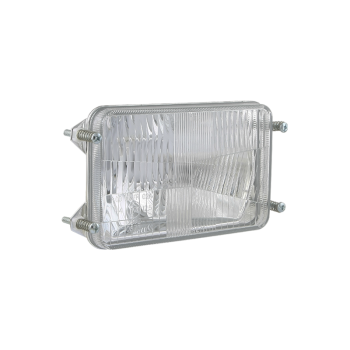

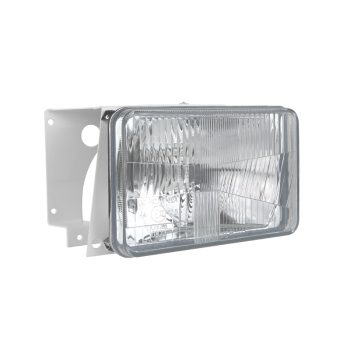

168x106 headlamps

168x106 headlamps

168x106 headlamps

168x106 headlamps

168x106 headlamps

168x106 headlamps

168x106 headlamps

168x106 headlamps

Dimensions	168x106x93
Light functions	passing, driving, position
Traffic	right-hand
Rated power	75/70W, 4W
Light source	H4, T4W
Supply voltage	12÷24V DC
IP rating	IP54
Homologation	E20
Reference mark	12.5

Catalogue page

Product versions

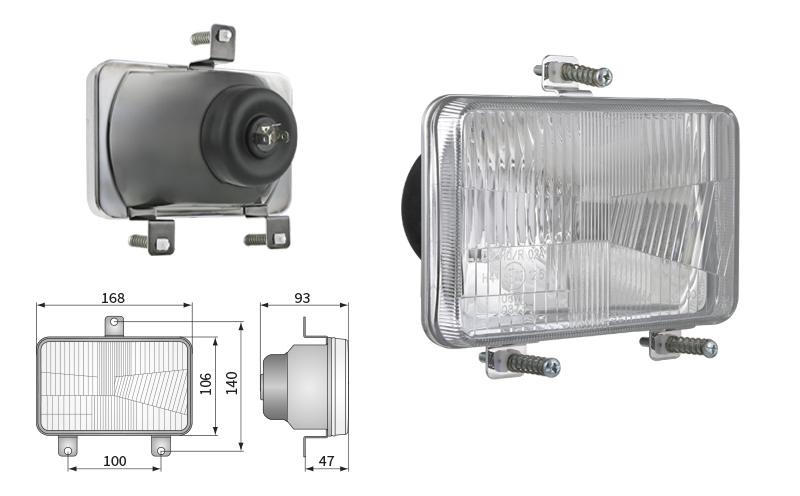

Headlamp insert, H4 type, hole pattern 100x140 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 100x140 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 100x140 (lights: passing, driving)

Compare	Part number	Equipment		Quantity
	RE.27011	without bulb, bulb gasket Part number: RE.27011 Quantity: carton box/1		carton box/1

Headlamp insert, H4 type, hole pattern 100x140 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 100x140 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 100x140 (lights: passing, driving, position)

Compare	Part number	Equipment		Quantity
	RE.27010	without bulbs, bulb gasket Part number: RE.27010 Quantity: carton box/1		carton box/1

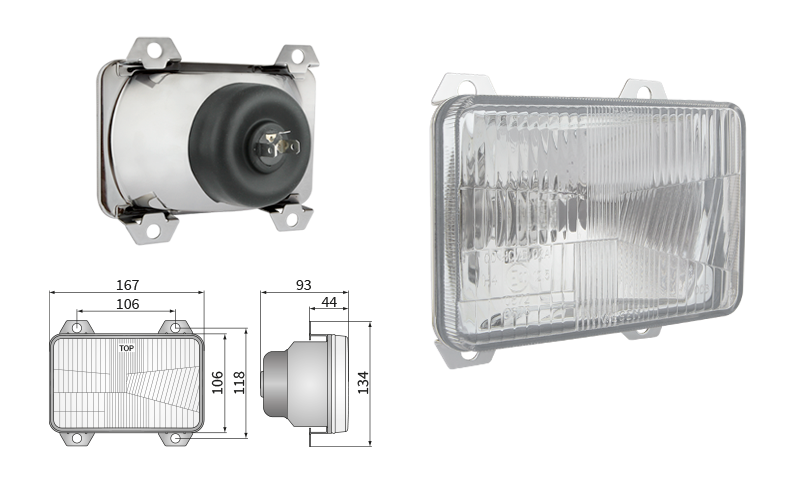

Headlamp insert, H4 type, hole pattern 106x118 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 106x118 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 106x118 (lights: passing, driving)

Compare	Part number	Equipment		Quantity
	RE.27095	without bulb, bulb gasket Part number: RE.27095 Quantity: carton box/1		carton box/1
	RE.27096	bulb H4 12V, bulb gasket Part number: RE.27096 Quantity: carton box/1		carton box/1

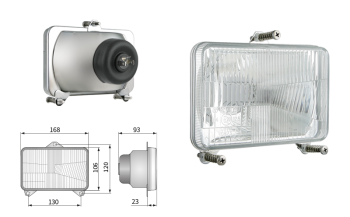

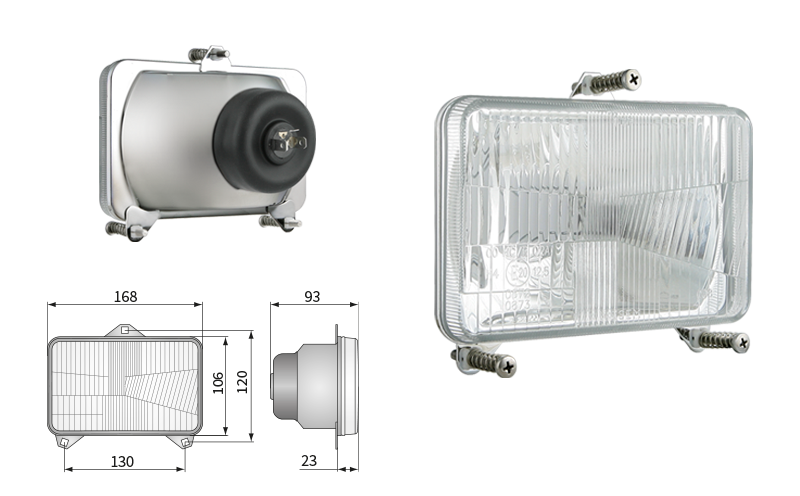

Headlamp insert, H4 type, hole pattern 130x120 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 130x120 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 130x120 (lights: passing, driving)

Compare	Part number	Equipment		Quantity
	RE.27001	without bulb, bulb gasket Part number: RE.27001 Quantity: carton box/1		carton box/1

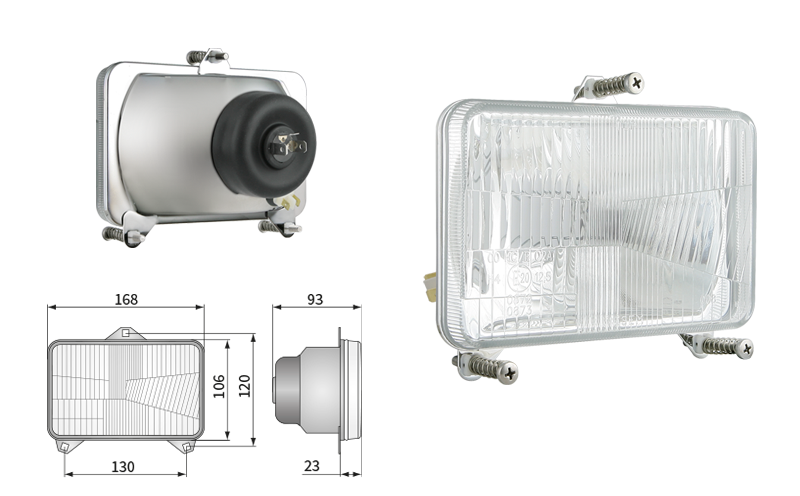

Headlamp insert, H4 type, hole pattern 130x120 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 130x120 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 130x120 (lights: passing, driving, position)

Compare	Part number	Equipment		Quantity
	RE.27000	without bulbs, bulb gasket Part number: RE.27000 Quantity: carton box/1		carton box/1

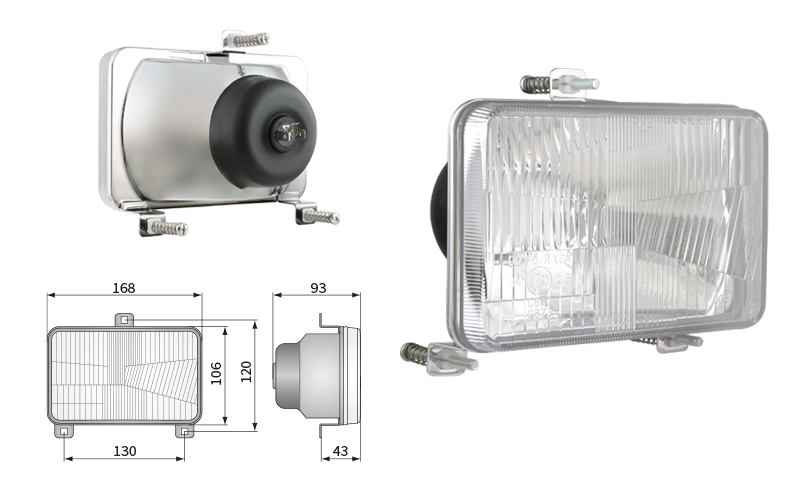

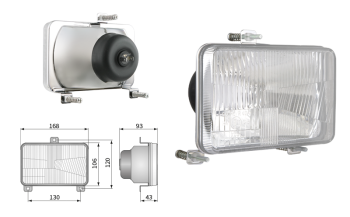

Headlamp insert, H4 type, hole pattern 130x120 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 130x120 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 130x120 (lights: passing, driving)

Compare	Part number	Equipment		Quantity
	RE.27031	without bulb, bulb gasket Part number: RE.27031 Quantity: carton box/1		carton box/1

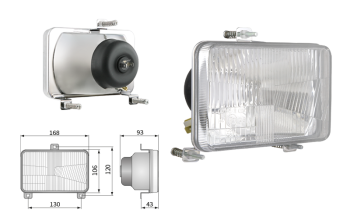

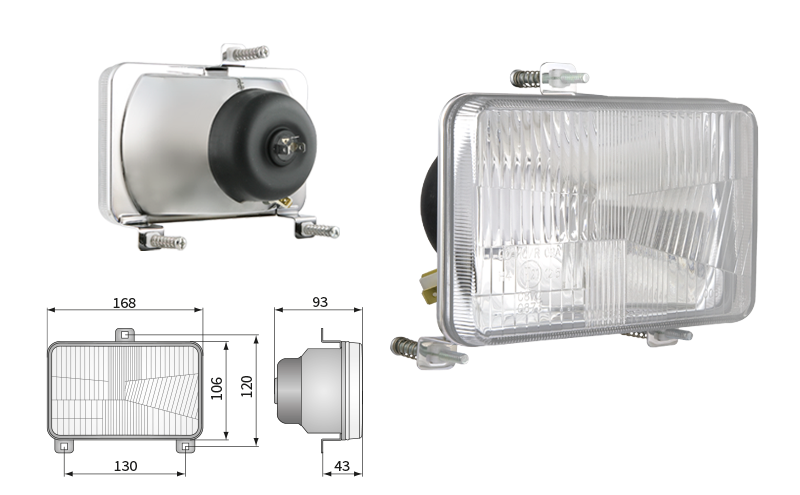

Headlamp insert, H4 type, hole pattern 130x120 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 130x120 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 130x120 (lights: passing, driving, position)

Compare	Part number	Equipment		Quantity
	RE.27030	without bulbs, bulb gasket Part number: RE.27030 Quantity: carton box/1		carton box/1

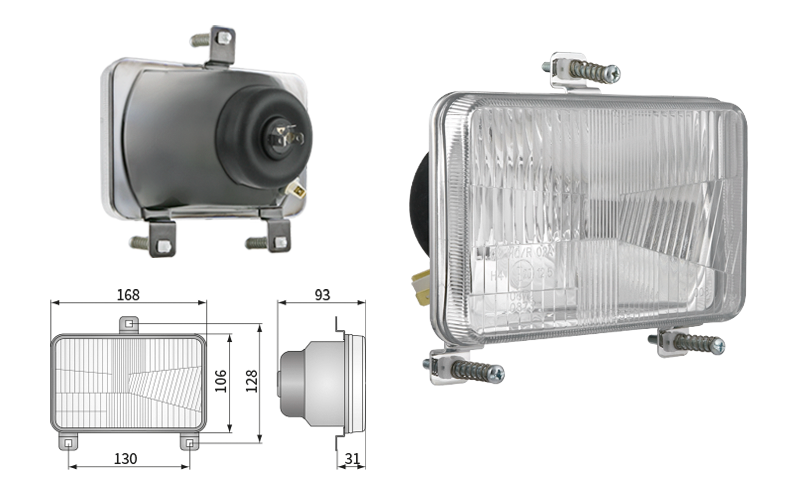

Headlamp insert, H4 type, hole pattern 130x128 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 130x128 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 130x128 (lights: passing, driving)

Compare	Part number	Equipment		Quantity
	RE.27041	without bulb, bulb gasket Part number: RE.27041 Quantity: carton box/1		carton box/1

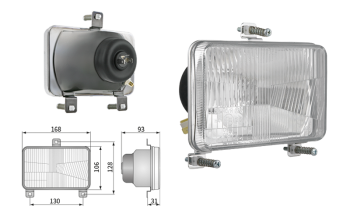

Headlamp insert, H4 type, hole pattern 130x128 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 130x128 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 130x128 (lights: passing, driving, position)

Compare	Part number	Equipment		Quantity
	RE.27040	without bulbs, bulb gasket Part number: RE.27040 Quantity: carton box/1		carton box/1

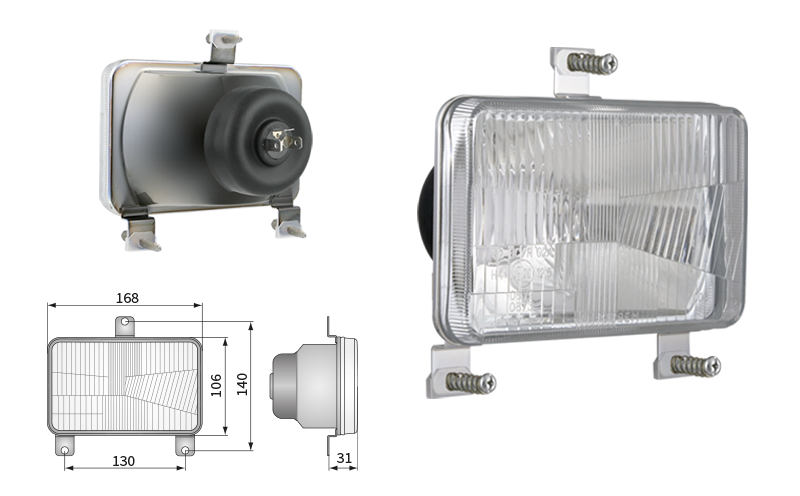

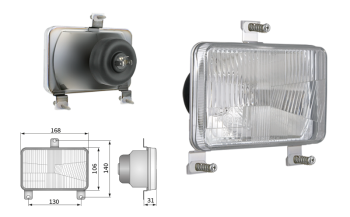

Headlamp insert, H4 type, hole pattern 130x140 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 130x140 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 130x140 (lights: passing, driving)

Compare	Part number	Equipment		Quantity
	RE.27021	without bulb, bulb gasket Part number: RE.27021 Quantity: carton box/1		carton box/1

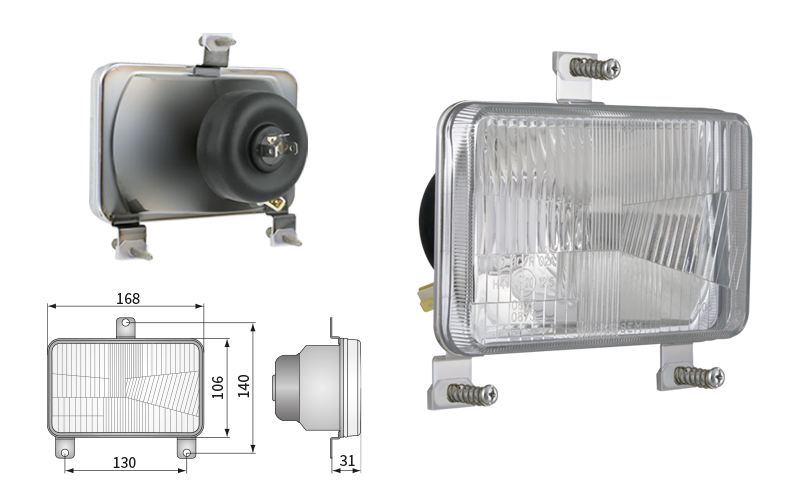

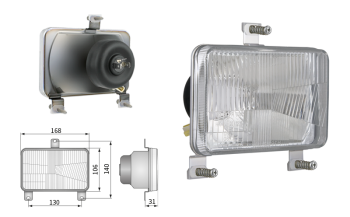

Headlamp insert, H4 type, hole pattern 130x140 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 130x140 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 130x140 (lights: passing, driving, position)

Compare	Part number	Equipment		Quantity
	RE.27020	without bulbs, bulb gasket Part number: RE.27020 Quantity: carton box/1		carton box/1

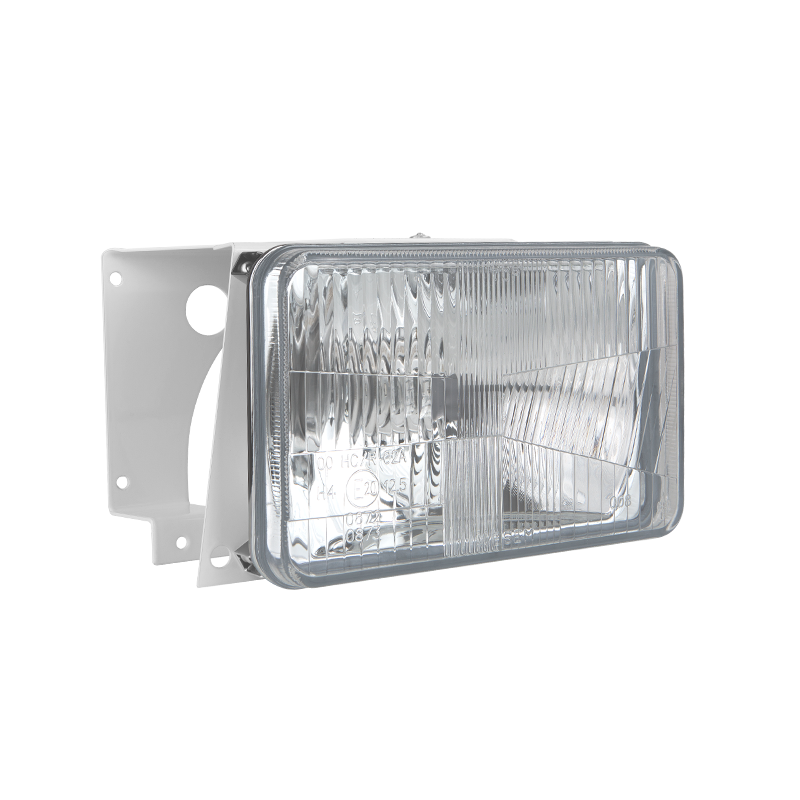

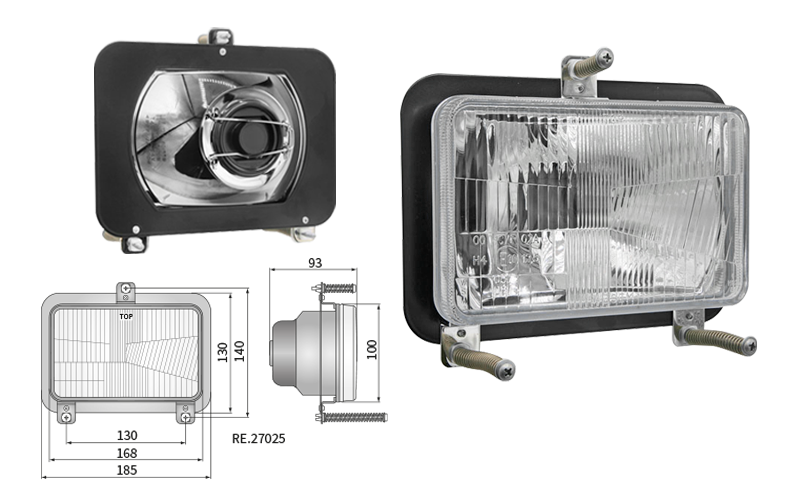

Headlamp, H4 type, hole pattern 130x140 (lights: passing, driving)

Headlamp, H4 type, hole pattern 130x140 (lights: passing, driving)

Headlamp, H4 type, hole pattern 130x140 (lights: passing, driving)

Compare	Part number	Equipment		Quantity
	RE.27025	without bulb, mounting plate, bulb gasket Part number: RE.27025 Quantity: carton box/1		carton box/1

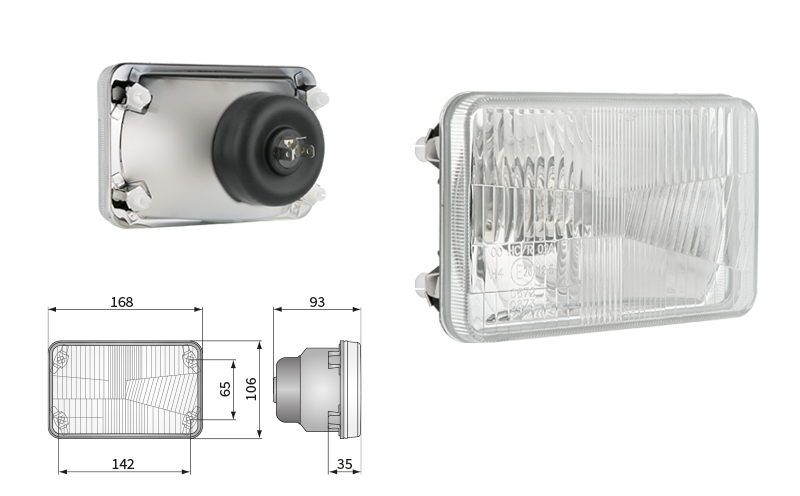

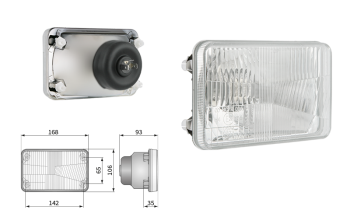

Headlamp insert, H4 type, hole pattern 142x65 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 142x65 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 142x65 (lights: passing, driving)

Compare	Part number	Equipment		Quantity
	RE.27081	without bulb, bulb gasket Part number: RE.27081 Quantity: carton box/1		carton box/1
	RE.27083	bulb H4 12V, bulb gasket Part number: RE.27083 Quantity: carton box/1		carton box/1

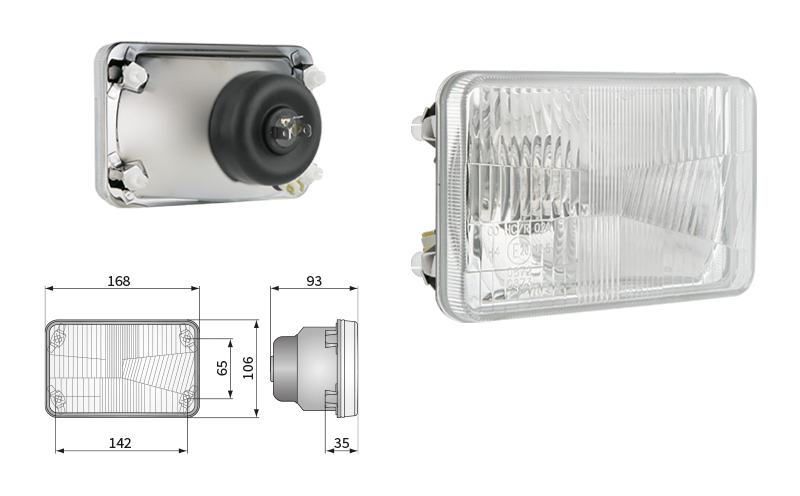

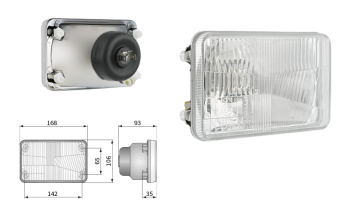

Headlamp insert, H4 type, hole pattern 142x65 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 142x65 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 142x65 (lights: passing, driving, position)

Compare	Part number	Equipment		Quantity
	RE.27080	without bulbs, bulb gasket Part number: RE.27080 Quantity: carton box/1		carton box/1

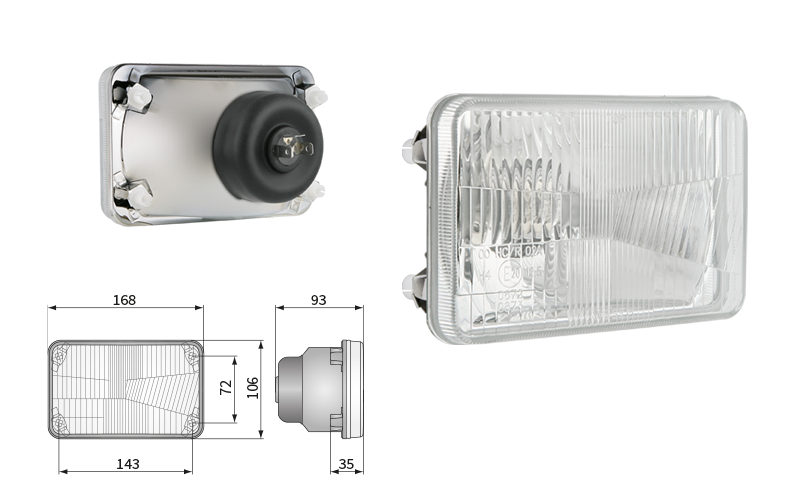

Headlamp insert, H4 type, hole pattern 143x72 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 143x72 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 143x72 (lights: passing, driving)

Compare	Part number	Equipment		Quantity
	RE.27071	without bulb, bulb gasket Part number: RE.27071 Quantity: carton box/1		carton box/1

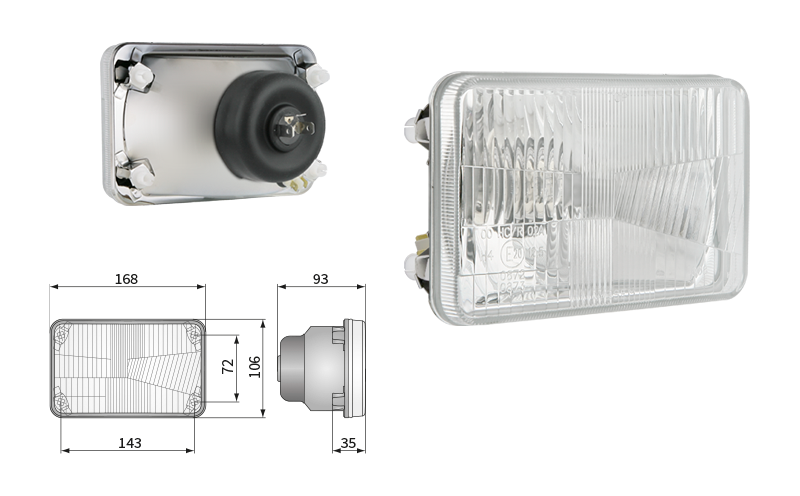

Headlamp insert, H4 type, hole pattern 143x72 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 143x72 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 143x72 (lights: passing, driving, position)

Compare	Part number	Equipment		Quantity
	RE.27070	without bulbs, bulb gasket Part number: RE.27070 Quantity: carton box/1		carton box/1

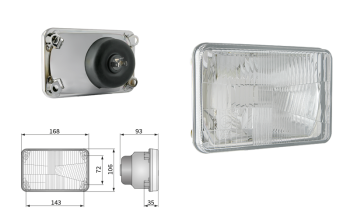

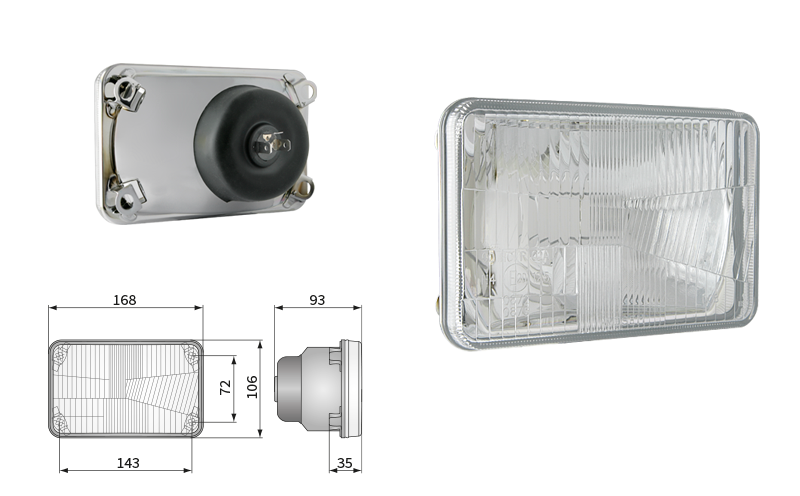

Headlamp insert, H4 type, hole pattern 143x72 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 143x72 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 143x72 (lights: passing, driving)

Compare	Part number	Equipment		Quantity
	RE.27073	without bulb, bulb gasket Part number: RE.27073 Quantity: carton box/1		carton box/1

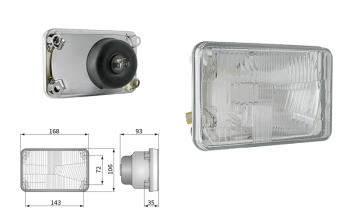

Headlamp insert, H4 type, hole pattern 143x72 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 143x72 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 143x72 (lights: passing, driving, position)

Compare	Part number	Equipment		Quantity
	RE.27072	without bulbs, bulb gasket Part number: RE.27072 Quantity: carton box/1		carton box/1

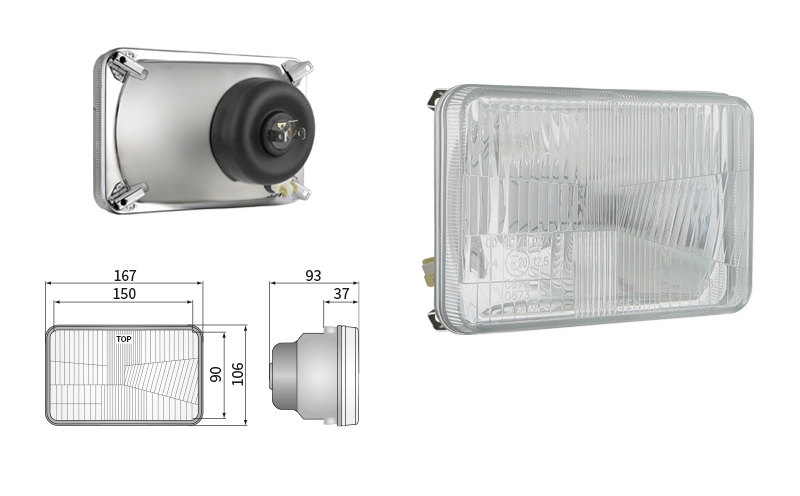

Headlamp insert, H4 type, hole pattern 150x90 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 150x90 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 150x90 (lights: passing, driving, position)

Compare	Part number	Equipment		Quantity
	RE.27075	without bulbs, bulb gasket Part number: RE.27075 Quantity: carton box/1		carton box/1

Headlamp insert, H4 type, hole pattern 150x90 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 150x90 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 150x90 (lights: passing, driving)

Compare	Part number	Equipment		Quantity
	RE.27076	without bulb, bulb gasket Part number: RE.27076 Quantity: carton box/1		carton box/1

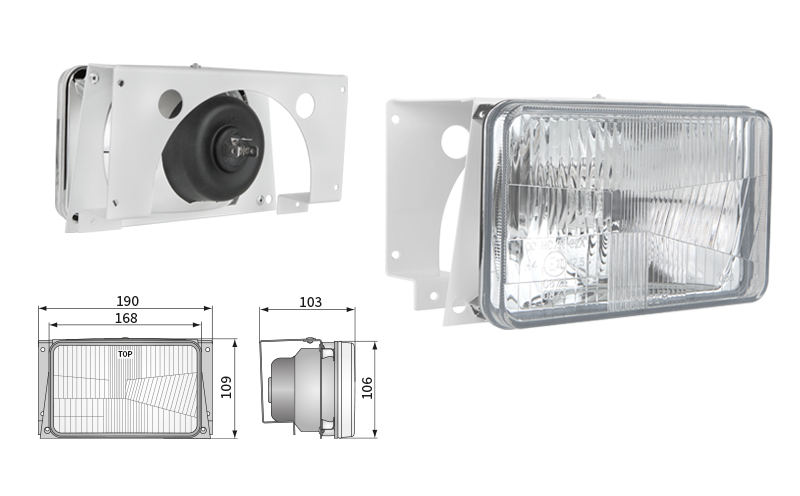

Headlamp, H4 type, hole pattern 150x90 (lights: passing, driving)

Headlamp, H4 type, hole pattern 150x90 (lights: passing, driving)

Headlamp, H4 type, hole pattern 150x90 (lights: passing, driving)

Compare	Part number	Equipment		Quantity
	RE.27077	without bulb, mounting plate, bulb gasket Part number: RE.27077 Quantity: carton box/1		carton box/1

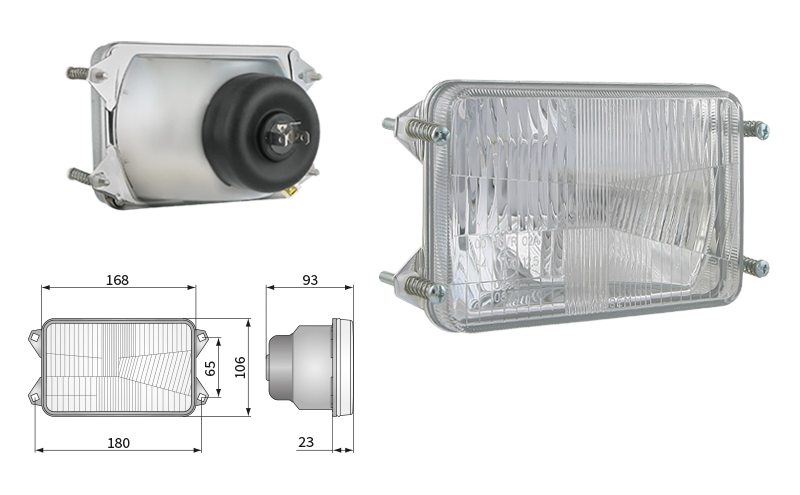

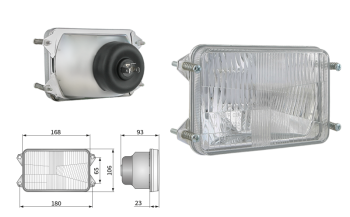

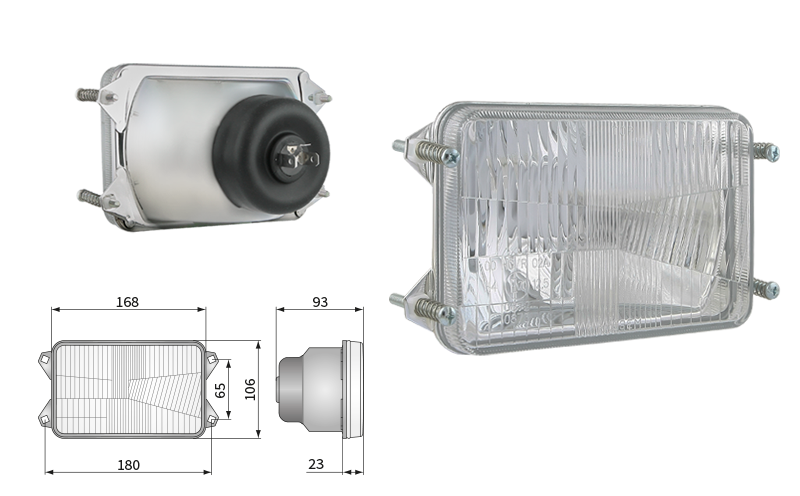

Headlamp insert, H4 type, hole pattern 180x65 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 180x65 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 180x65 (lights: passing, driving)

Compare	Part number	Equipment		Quantity
	RE.27051	without bulb, bulb gasket Part number: RE.27051 Quantity: carton box/1		carton box/1

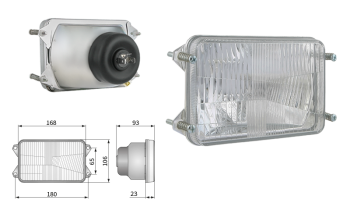

Headlamp insert, H4 type, hole pattern 180x65 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 180x65 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 180x65 (lights: passing, driving, position)

Compare	Part number	Equipment		Quantity
	RE.27050	without bulbs, bulb gasket Part number: RE.27050 Quantity: carton box/1		carton box/1

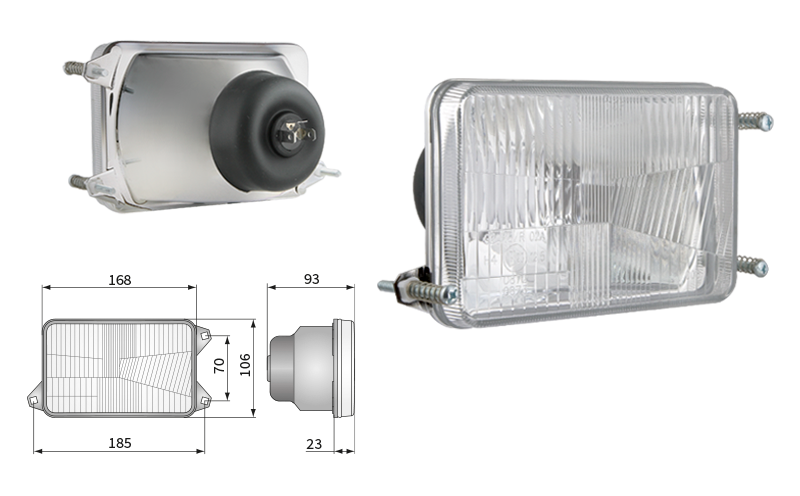

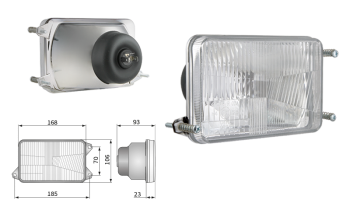

Headlamp insert, H4 type, hole pattern 185x70 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 185x70 (lights: passing, driving)

Headlamp insert, H4 type, hole pattern 185x70 (lights: passing, driving)

Compare	Part number	Equipment		Quantity
	RE.27061	without bulb, bulb gasket Part number: RE.27061 Quantity: carton box/1		carton box/1

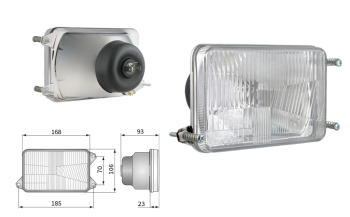

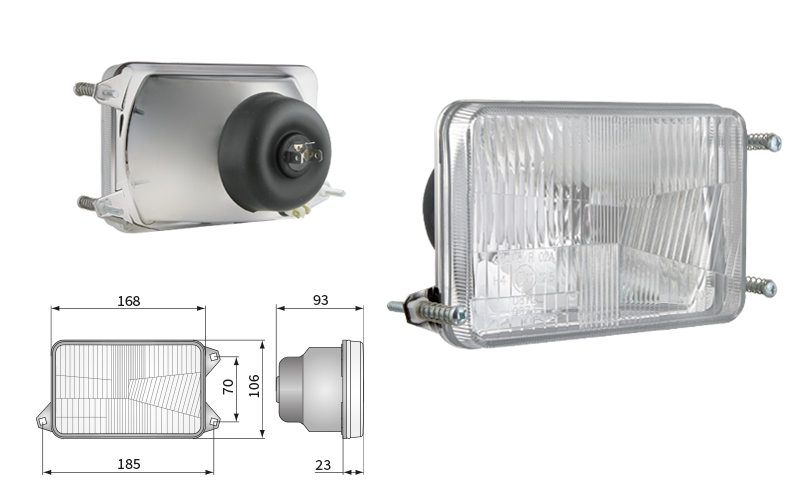

Headlamp insert, H4 type, hole pattern 185x70 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 185x70 (lights: passing, driving, position)

Headlamp insert, H4 type, hole pattern 185x70 (lights: passing, driving, position)

Compare	Part number	Equipment		Quantity
	RE.27060	without bulbs, bulb gasket Part number: RE.27060 Quantity: carton box/1		carton box/1
